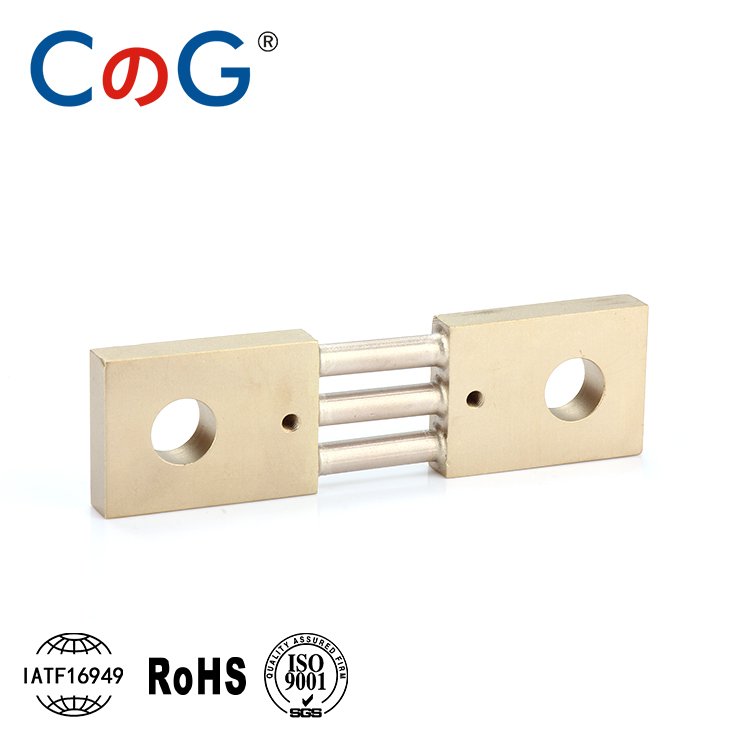

New Energy DC Shunt Type 5
The New Energy DC Shunt Type 5 is tailored for EV current measurement, energy storage monitoring, and DC fast-charging stations. With a standard 75mV output and ±0.5% accuracy, it provides dependable performance under continuous load.
Built with a brass base and manganin resistive alloy, it ensures low thermal drift, strong overload tolerance (120% for 2 hours), and excellent repeatability. Type 5 features a durable, compact structure suitable for both inline and embedded applications.
Fully customizable from 1A to 10000A, it supports various millivolt outputs (60/100/200mV) and terminal layouts, making it ideal for OEMs in the EV and smart energy sectors.
| Parameter | Specification |
|---|---|
| Model | New Energy DC Shunt Type 5 |
| Rated Current | 1A–10000A (customizable) |
| Voltage Drop | 75mV (optional: 60/100/200mV) |
| Accuracy | ±0.5% |
| Resistive Material | Manganin |
| Terminal Material | Brass |
| Overload Tolerance | 120% for 2 hours |
| Application | EV systems, ESS, DC power distribution |
| Customization | Output voltage, current range, terminal structure |
| Compliance | ISO9001, CE |
