New Energy DC Shunt Type 4

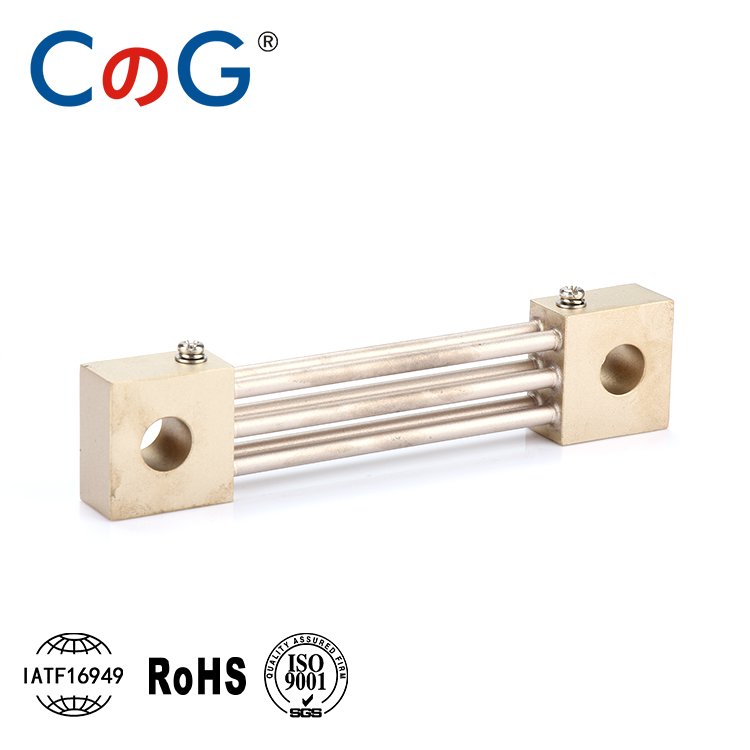

The New Energy DC Shunt Type 4 is built for reliable DC current sensing in electric vehicle systems, energy storage units, and high-power DC chargers. Delivering a standard 75mV voltage drop with ±0.5% accuracy, it supports precise current monitoring across demanding applications.
Its structure features brass terminals and a manganin resistive core, optimized for low resistance and stable output. It withstands up to 120% rated current for 2 hours, ensuring performance durability even under extended load.
The Type 4 configuration offers compact footprint, customizable voltage outputs (60/100/200mV), and is fully tailored for high-current paths from 1A to 10000A. It is widely used in modern electrification and industrial power systems where space and thermal stability are critical.
| Parameter | Specification |
|---|---|
| Model | New Energy DC Shunt Type 4 |
| Rated Current | 1A–10000A (customizable) |
| Voltage Drop | 75mV (optional 60mV / 100mV / 200mV) |
| Accuracy | ±0.5% |
| Resistive Element | Manganin |
| Terminal Material | Brass |
| Overload Capacity | 120% rated current for 2 hours |
| Application | EV, ESS, DC charging systems |
| Customization | Voltage drop, current range, terminal design |
| Compliance | ISO9001, CE |
