New Energy DC Shunt Type 3

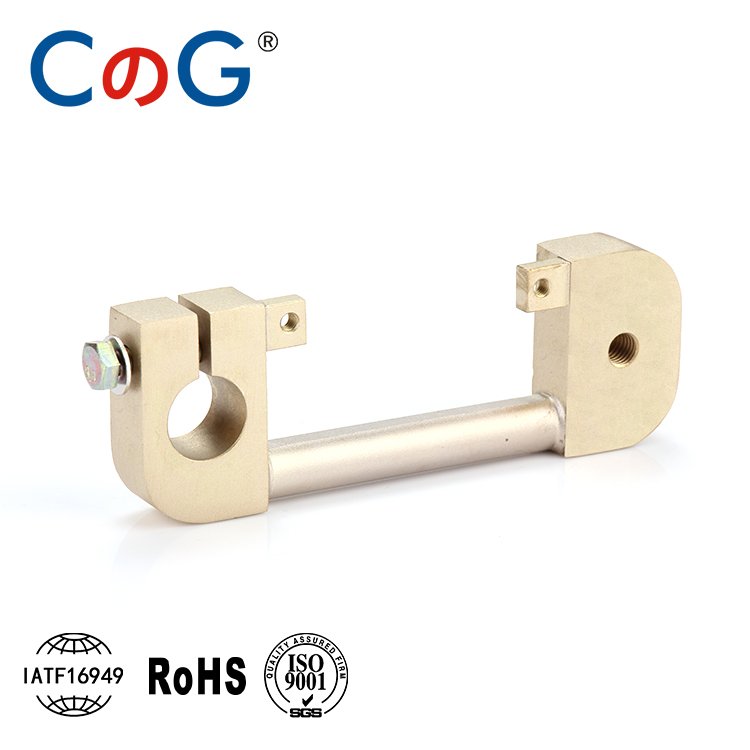

The New Energy DC Shunt Type 3 is engineered for high-current DC monitoring in EV batteries, fast-charging terminals, and energy storage systems (ESS). Featuring a standard 75mV output and ±0.5% accuracy, it provides stable and reliable current sensing across a broad range of operating conditions.
Constructed from brass terminals and manganin resistive strips, Type 3 ensures low resistance, minimal heat generation, and strong overload tolerance (120% for 2 hours). Its design supports both horizontal and vertical mounting, making it ideal for tight-space applications or custom PCBs.
Type 3 is available in custom current ranges from 1A to 10000A, with selectable voltage drops (60mV, 100mV, 200mV) and flexible terminal layouts to meet diverse integration requirements.
| Parameter | Specification |
|---|---|
| Model | New Energy DC Shunt Type 3 |
| Rated Current | 1A–10000A (customizable) |
| Voltage Drop | 75mV standard (60/100/200mV optional) |
| Accuracy | ±0.5% |
| Resistive Element | Manganin |
| Terminal Material | Brass |
| Overload Capacity | 120% rated current for 2 hours |
| Application | EVs, ESS, DC fast-charging |
| Customization | Output voltage, current, terminal structure |
| Compliance | ISO9001, CE |
To explore more models from the New Energy Shunt, click here and discover the right solution for your application.
