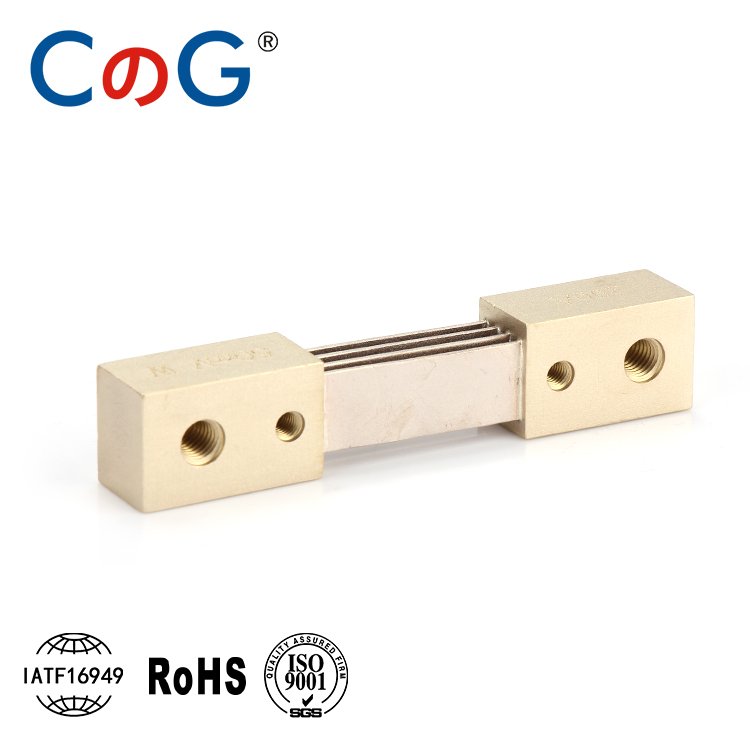

New Energy DC Shunt Type 2
The New Energy DC Shunt Type 2 is a high-efficiency DC current sensor designed for electric vehicle platforms, DC charging infrastructure, and energy storage systems (ESS). With a rated 75mV voltage drop and ±0.5% accuracy, it ensures consistent performance in critical energy applications.
Built from brass terminals and manganin resistive strips, Type 2 offers excellent overload endurance (120% for 2 hours), low resistance loss, and strong thermal stability. Its structure supports high-current flow with compact footprint, ideal for OEM integration.
This model can be customized across a wide current range (1A–10000A), and supports flexible mounting, voltage options (60mV/100mV/200mV), and busbar design to suit diverse system layouts.
| Parameter | Specification |
|---|---|
| Model | New Energy DC Shunt Type 2 |
| Rated Current | 1A–10000A (customizable) |
| Voltage Drop | 75mV standard (60/100/200mV optional) |
| Accuracy | ±0.5% |
| Core Material | Manganin |
| Terminal Material | Brass |
| Overload Capacity | 120% for 2 hours |
| Application | EVs, ESS, fast chargers |
| Customization | Current rating, structure, output voltage |
| Compliance | ISO9001, CE |
