FL Type 2 Circuit Board Shunt

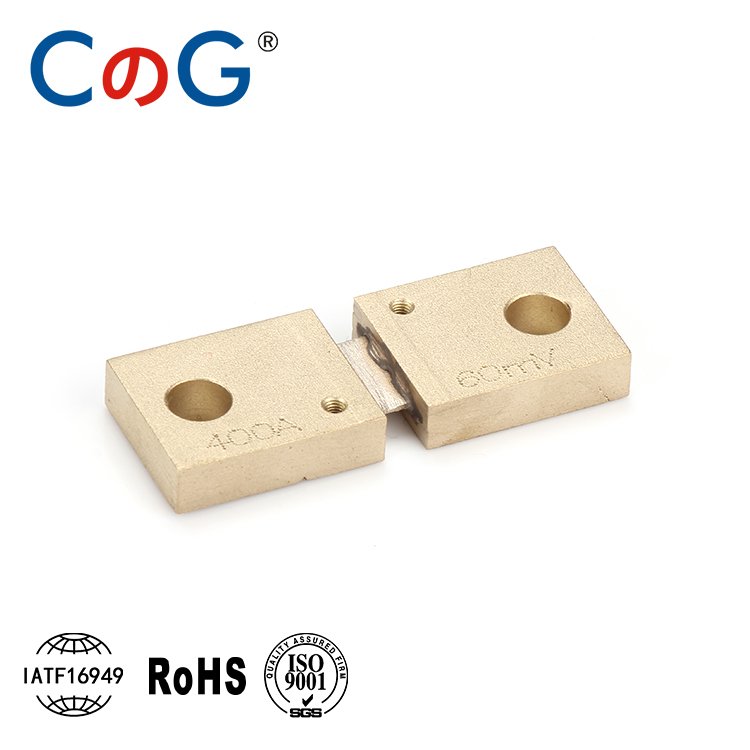

The FL Type 2 Circuit Board Shunt is designed to deliver accurate high-current measurement for embedded PCB systems. Featuring a 60mV output at 400A, with a precise 0.15mΩ resistance, this model enables efficient real-time current feedback with minimal power loss.
Constructed with a manganin resistive core and robust terminal design, the FL Type 2 is suitable for use in EV battery packs, BMS modules, industrial DC converters, and renewable energy controllers. Its compact footprint and PCB-mountable structure support seamless integration into high-density board layouts.
Custom versions of this model are available, including modifications to terminal orientation, resistance value, mounting type, and precision class (standard ±0.1%, optional ±0.05% or ±0.01%).
| Parameter | Specification |
|---|---|
| Model | FL Type 2 Circuit Board Shunt |
| Rated Current | 400A |
| Voltage Drop | 60mV |
| Resistance Value | 0.15mΩ |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Mounting Type | PCB mount / bolt-on pin (customizable) |
| Material | Manganin core + copper/brass terminals |
| Application | EVs, BMS, DC systems, renewable power modules |
| Operating Temp | -40°C to +105°C |
| Compliance | ISO9001, RoHS |
To explore more models from the FL-P&U Circuit Board Shunt, click here and discover the right solution for your application.
