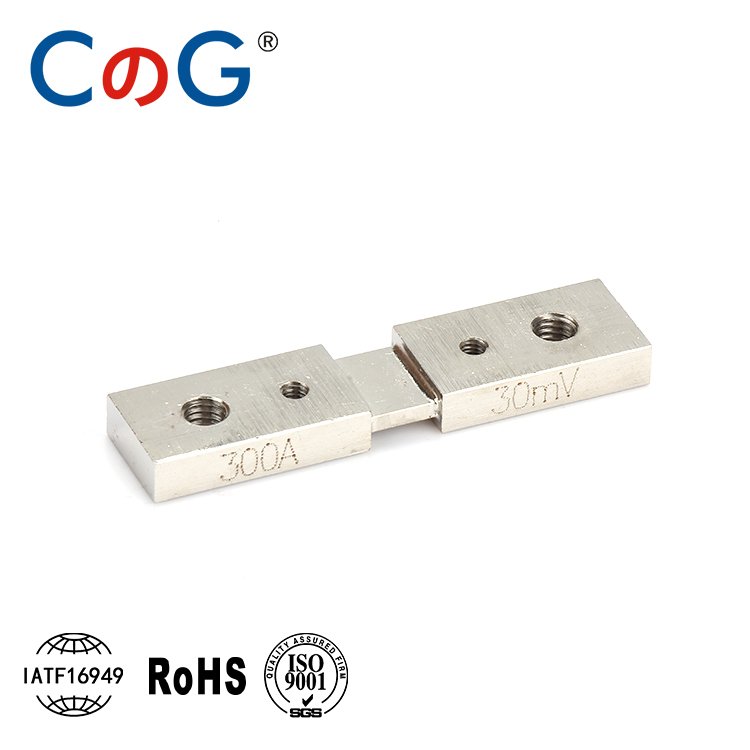

FL Type 1 Circuit Board Shunt
The FL Type 1 Circuit Board Shunt is a 300A 30mV precision shunt resistor tailored for embedded PCB applications requiring high-current monitoring with low voltage drop. Its 0.1mΩ resistance and ±0.1% accuracy enable highly reliable current sensing in DC power systems, BMS modules, EV charging boards, and inverter control circuits.
This model features a compact, board-mounted structure compatible with through-hole or screw-fastened designs, making it ideal for space-constrained layouts without compromising measurement stability. The use of manganin resistive alloy ensures excellent long-term thermal and electrical performance under continuous high-current operation.
Available with customizable resistance values, terminal orientation, and accuracy classes (up to ±0.01%), the FL Type 1 shunt supports flexible deployment across automotive, industrial, and smart energy applications.
| Parameter | Specification |
|---|---|
| Model | FL Type 1 Circuit Board Shunt |
| Rated Current | 300A |
| Voltage Drop | 30mV |
| Resistance Value | 0.1mΩ |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Mounting Type | PCB mount / screw pin / slot-type (custom) |
| Material | Manganin alloy + copper/brass terminals |
| Application | DC modules, EV systems, BMS, inverters |
| Operating Temp | -40°C to +105°C |
| Compliance | ISO9001, RoHS |
