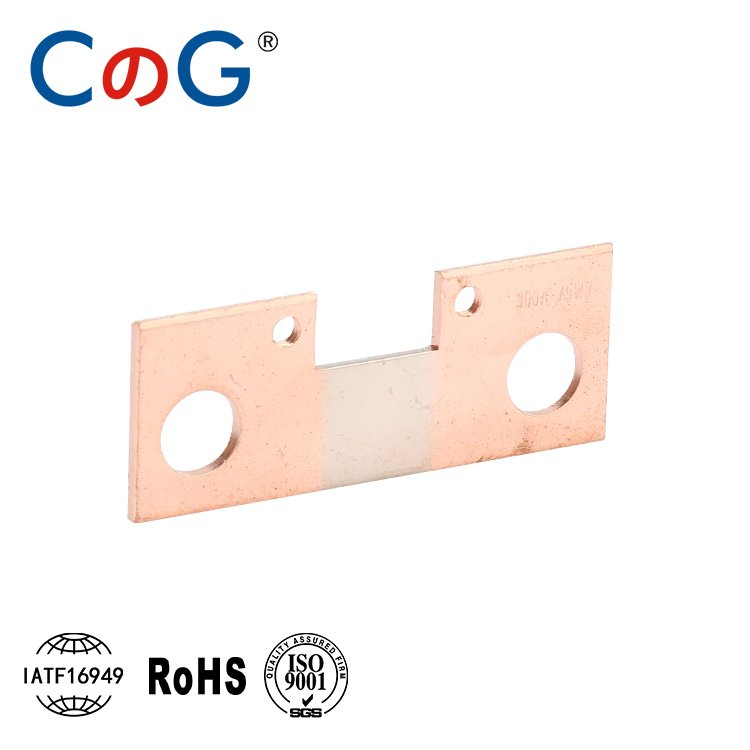

FL-P Circuit Board Shunt
The FL-P Circuit Board Shunt series is designed for direct PCB integration in space-limited systems requiring high-current sensing between 100A and 500A. Engineered with a compact form factor and a stable 75mV output, this model ensures accurate current feedback while maintaining minimal resistance and thermal loss.
Its manganin alloy core and pin-through mounting design make it ideal for EV BMS modules, smart inverters, high-efficiency DC-DC converters, and other embedded power electronics. With standard ±0.1% accuracy (customizable to ±0.05% or ±0.01%), it provides dependable performance even under fluctuating load conditions.
The FL-P shunt supports full customization, including voltage output, terminal layout, resistance range, and precision class. It is compatible with wave soldering and through-hole PCB assembly, simplifying OEM integration.
| Parameter | Specification |
|---|---|
| Model | FL-P Circuit Board Shunt |
| Current Range | 100A to 500A (customizable) |
| Voltage Drop | 75mV (custom available) |
| Resistance Range | 0.00075Ω to 0.00015Ω (based on current) |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Material | Manganin resistive core + PCB-mount terminals |
| Mounting Type | PCB pin-through (wave soldering compatible) |
| Operating Temperature | -40°C to +105°C |
| Application | BMS, DC modules, EV systems, PCB-based sensors |
| Compliance | ISO9001, RoHS |
To explore more models from the FL-P&U Circuit Board Shunt, click here and discover the right solution for your application.
