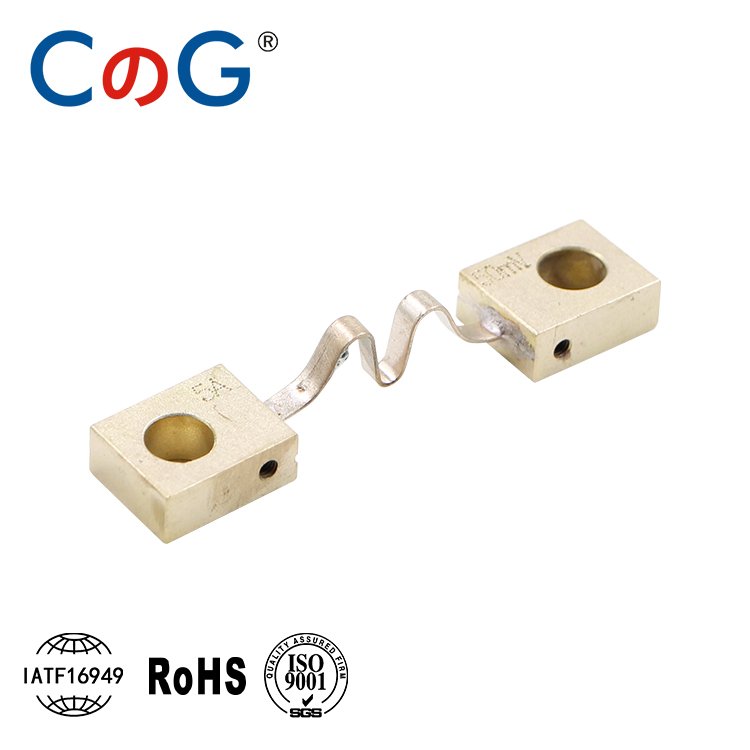

FL 5A 50mV Customed Circuit Board Shunt
The FL 5A 50mV Customed Circuit Board Shunt is designed for accurate low-current measurement in space-constrained electronic systems. With a 50mV output at 5A and custom resistance value of 10mΩ, this model provides high-resolution sensing with minimal power loss.
Ideal for applications such as battery management systems (BMS), smart meters, portable electronics, and micro-inverter controllers, the shunt features a manganin resistive element that ensures thermal stability and minimal drift under varying operating conditions.
The FL 5A model can be tailored to meet specific design requirements including terminal configuration, mounting direction, and accuracy level (up to ±0.01%), making it a flexible option for developers and OEMs integrating real-time current feedback into small-scale PCB designs.
| Parameter | Specification |
|---|---|
| Model | FL 5A 50mV Customed Circuit Board Shunt |
| Rated Current | 5A |
| Voltage Drop | 50mV |
| Resistance Value | 10mΩ |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Mounting Type | PCB mount (custom layout available) |
| Material | Manganin alloy + tinned copper terminals |
| Application | BMS, portable DC systems, precision sensing |
| Operating Temp | -40°C to +105°C |
| Compliance | ISO9001, RoHS |
