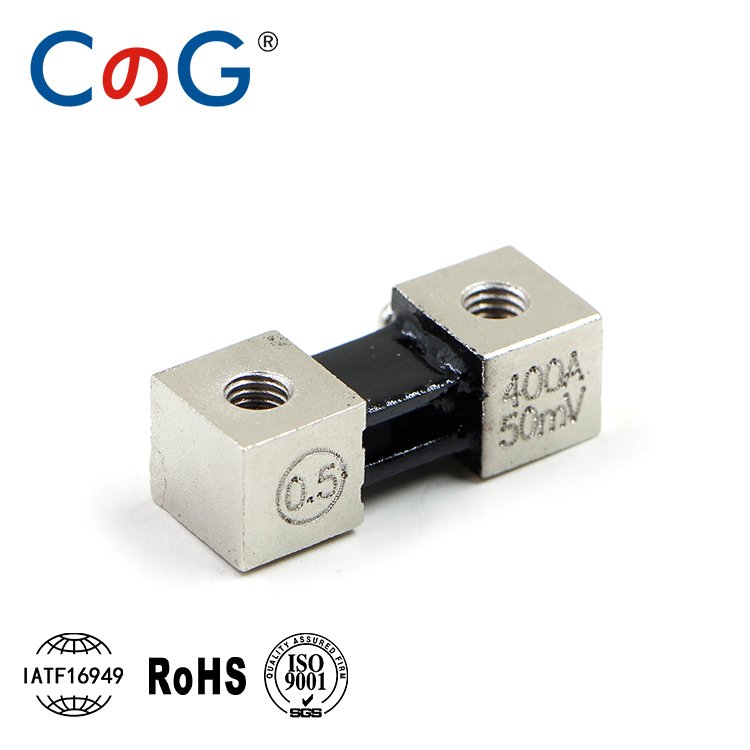

FL 400A 50mV Customed Circuit Board Shunt
The FL 400A 50mV Customed Circuit Board Shunt is engineered for high-current DC measurement in compact electronic systems. Designed with a 50mV voltage drop output and customized resistance value, this model delivers accurate current sensing with minimal energy loss.
Its manganin resistive core and PCB-mountable design make it suitable for applications such as battery packs, inverters, EV systems, and power electronics, where precision, space efficiency, and reliability are critical.
Custom options include resistance tuning, pin layout, mounting style, and accuracy class (up to ±0.01%). The 400A model balances high capacity with low footprint, making it ideal for OEMs seeking tailor-made current shunt solutions.
| Parameter | Specification |
|---|---|
| Model | FL 400A 50mV Customed Circuit Board Shunt |
| Rated Current | 400A |
| Voltage Drop | 50mV |
| Resistance Value | 0.125mΩ |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Mounting Type | PCB mount (custom pin layout) |
| Material | Manganin resistive element + copper terminals |
| Application | EVs, BMS, DC power control, industrial boards |
| Operating Temp | -40°C to +105°C |
| Compliance | ISO9001, RoHS |
