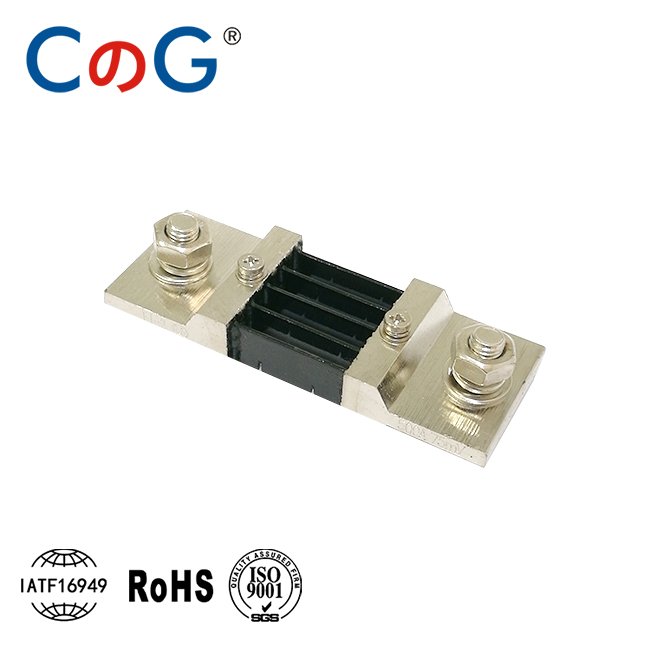

FL-39 DC Shunts Series 500A
The FL-39 DC Shunts Series 500A provides stable and precise DC current sensing for electric vehicles, UPS backup power, and renewable energy systems. With a 75mV output and ±0.5% accuracy, it ensures long-term performance in demanding environments.
Built with nickel-plated copper terminals and a manganin resistive element, this model resists corrosion and thermal drift. Its structure supports 120% overload for 2 hours, and mounting holes are designed for easy panel integration. OEM customization includes voltage drop (60/100/150mV), resistance values, and terminal style.
| Parameter | Specification |
|---|---|
| Model | FL-39 DC Shunts Series 500A |
| Rated Current | 500A |
| Voltage Drop | 75mV (custom: 60/100/150mV) |
| Accuracy | ±0.5% (optional ±0.1%) |
| Material | Manganin + nickel-plated copper |
| Mounting | Screw/panel mount |
| Overload Capacity | 120% rated current for 2 hours |
| Applications | EVs, solar, industrial DC panels, UPS |
| Customization | Output, resistance, terminals, dimensions |
| Certifications | ISO9001, CE, RoHS |
