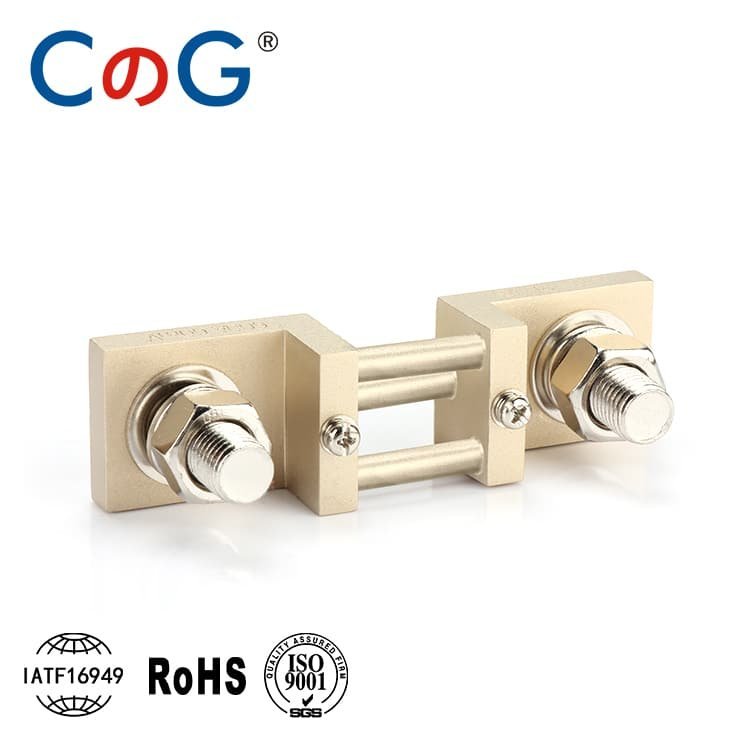

FL-2D Din Shunts Series 600A
The FL-2D Din Shunts Series 600A is a high-accuracy current shunt designed to the DIN 43703 German Standard, delivering stable DC measurement for demanding 600A applications. With ±0.1% standard accuracy and optional enhancements to ±0.05% or ±0.01%, this shunt offers consistent output and low thermal drift under high current load.
Built with a durable manganin resistive element and copper terminals, the 600A model features a resistance of 0.125mΩ (75mV at 600A), reducing power loss and ensuring energy efficiency. The DIN-compliant structure supports quick panel or bolt-on installation in electric vehicle drive systems, solar inverters, UPS modules, BMS cabinets, and industrial automation panels.
| Parameter | Specification |
|---|---|
| Model | FL-2D Din Shunts Series 600A |
| Standard | DIN 43703 (German Mounting Format) |
| Rated Current | 600A |
| Voltage Drop | 75mV (customizable to 50mV / 100mV) |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Resistance Value | 0.125mΩ (based on 75mV/600A) |
| Mounting Type | Panel-mount / Bolt-on (DIN 43703 compatible) |
| Temperature Coefficient | ≤ 50 ppm/°C |
| Operating Temperature | -40°C to +85°C |
| Material | Manganin resistive element + copper bars |
| Compliance | ISO9001, CE, RoHS |
