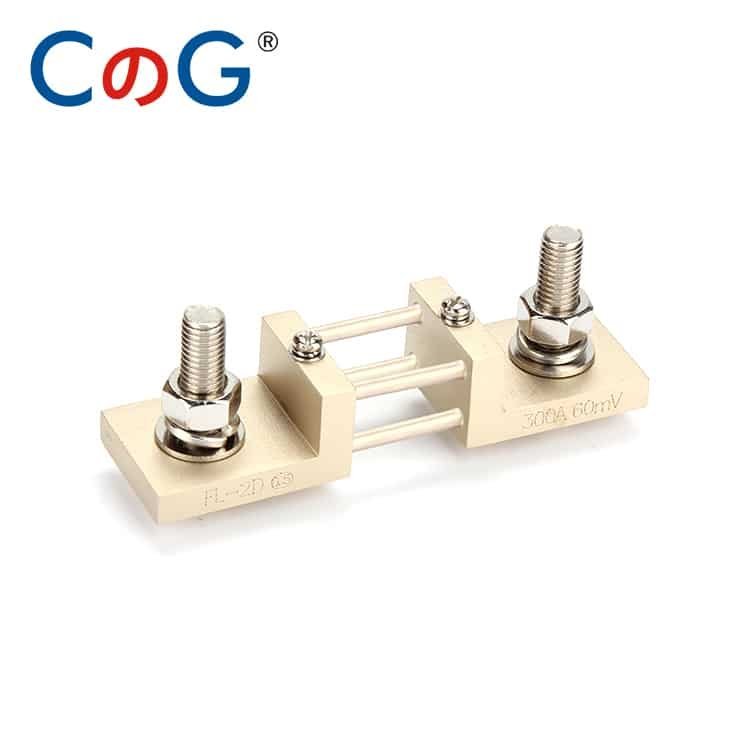

FL-2D Din Shunts Series 300A
The FL-2D Din Shunts Series 300A is a high-precision DC current measurement device manufactured to DIN 43703 German Standard. It provides ±0.1% standard accuracy and is available in even tighter tolerances for critical monitoring environments. Its compact DIN-compatible design enables fast installation and stable long-term performance.
With a resistance of 0.25mΩ (75mV at 300A), the FL-2D 300A model ensures low energy loss and excellent thermal stability. It’s ideal for electric vehicle platforms, battery storage units, solar power systems, UPS infrastructure, and industrial automation panels that require precise current monitoring within limited space.
| Parameter | Specification |
|---|---|
| Model | FL-2D Din Shunts Series 300A |
| Standard | DIN 43703 (German Format) |
| Rated Current | 300A |
| Voltage Drop | 75mV (customizable: 50mV / 100mV) |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Resistance Value | 0.25mΩ (based on 75mV/300A) |
| Mounting Type | Bolt-on / Panel mount (DIN-compliant) |
| Temperature Coefficient | ≤ 50 ppm/°C |
| Operating Temperature | -40°C to +85°C |
| Material | Manganin resistive element + copper terminals |
| Compliance | ISO9001, CE, RoHS |
