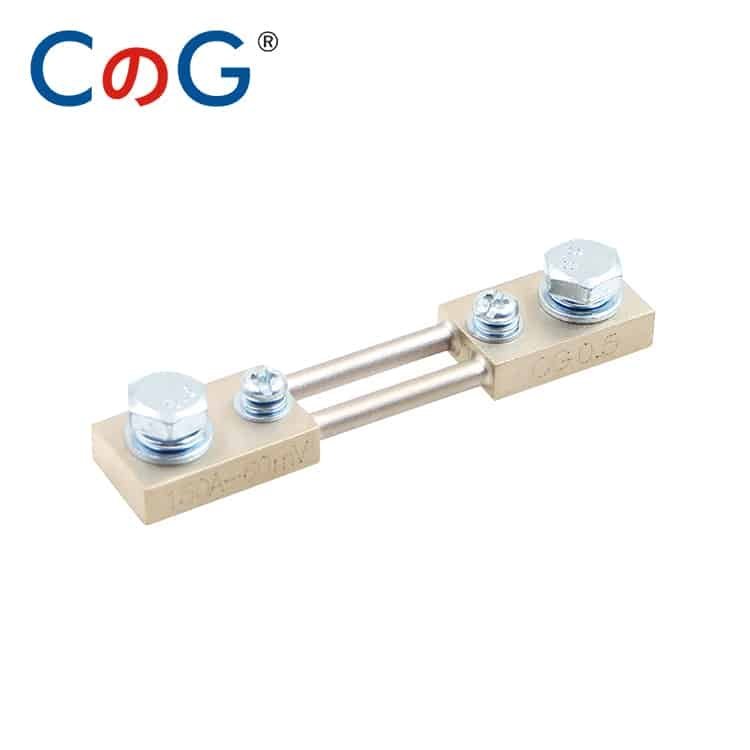

FL-2D Din Shunts Series 150A 60mV
The FL-2D Din Shunts Series 150A 60mV is a compact and high-precision DC current measurement device designed to meet the DIN 43703 German Standard. Engineered to output 60mV at 150A, it features ±0.1% standard accuracy and supports upgrades to ±0.05% or ±0.01% for enhanced measurement precision.
With a resistance value of 0.4mΩ, this model minimizes power loss while providing reliable and stable output for use in BMS, DC charging stations, UPS systems, energy storage cabinets, and industrial automation equipment. Its DIN-compliant form factor ensures easy panel installation and long-term operational reliability in demanding environments.
| Parameter | Specification |
|---|---|
| Model | FL-2D Din Shunts Series 150A 60mV |
| Standard | DIN 43703 (German Mounting Format) |
| Rated Current | 150A |
| Voltage Drop | 60mV |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Resistance Value | 0.4mΩ (based on 60mV/150A) |
| Mounting Type | Panel-mount / Bolt-on (DIN compliant) |
| Temperature Coefficient | ≤ 50 ppm/°C |
| Operating Temperature | -40°C to +85°C |
| Material | Manganin resistive alloy + copper terminals |
| Compliance | ISO9001, CE, RoHS |
