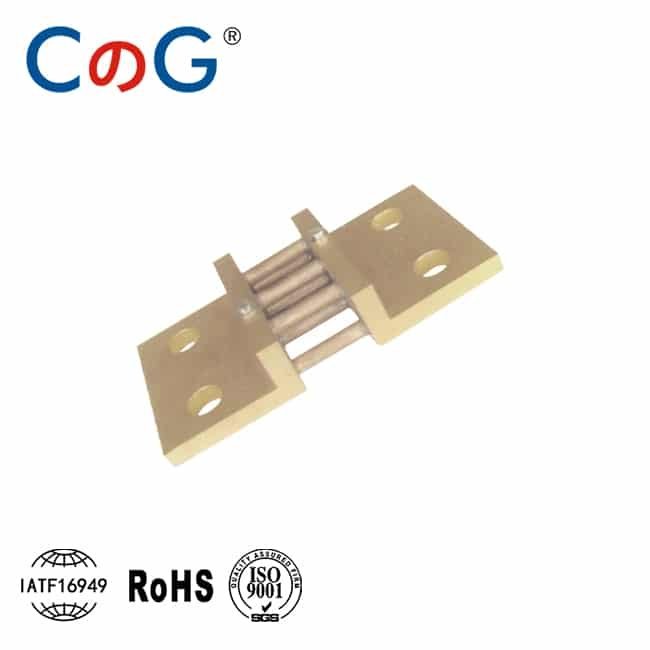

FL-2D-Din-Shunts-Series-1200 to 1500A
The FL-2D-Din-Shunts-Series-1200 to 1500A is engineered to deliver precise current measurement for high-load DC applications, following the DIN 43703 German Standard. Designed to operate in the 1200A to 1500A range, this series provides ±0.1% standard accuracy with optional higher-precision models available at ±0.05% or ±0.01%.
With resistance values ranging from 0.0625mΩ (for 1200A) to 0.05mΩ (for 1500A), these shunts ensure minimal voltage drop and excellent thermal performance, even under continuous high-current conditions. Their robust DIN-compliant design allows easy integration into electric vehicles, battery energy storage systems, solar infrastructure, UPS cabinets, and industrial control systems.
The use of high-grade manganin resistive elements and copper terminals ensures long-term stability, low temperature drift, and reliable signal integrity across demanding environments.
| Parameter | Specification |
|---|---|
| Model | FL-2D-Din-Shunts-Series-1200 to 1500A |
| Standard | DIN 43703 (German Mounting Format) |
| Rated Current | 1200A to 1500A |
| Voltage Drop | 75mV (customizable: 50mV / 100mV) |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Resistance Value | 0.0625–0.05mΩ (based on current rating) |
| Mounting Type | Panel-mount / Bolt-on (DIN-compliant) |
| Temperature Coefficient | ≤ 50 ppm/°C |
| Operating Temperature | -40°C to +85°C |
| Material | Manganin resistive element + copper busbars |
| Compliance | ISO9001, CE, RoHS |
