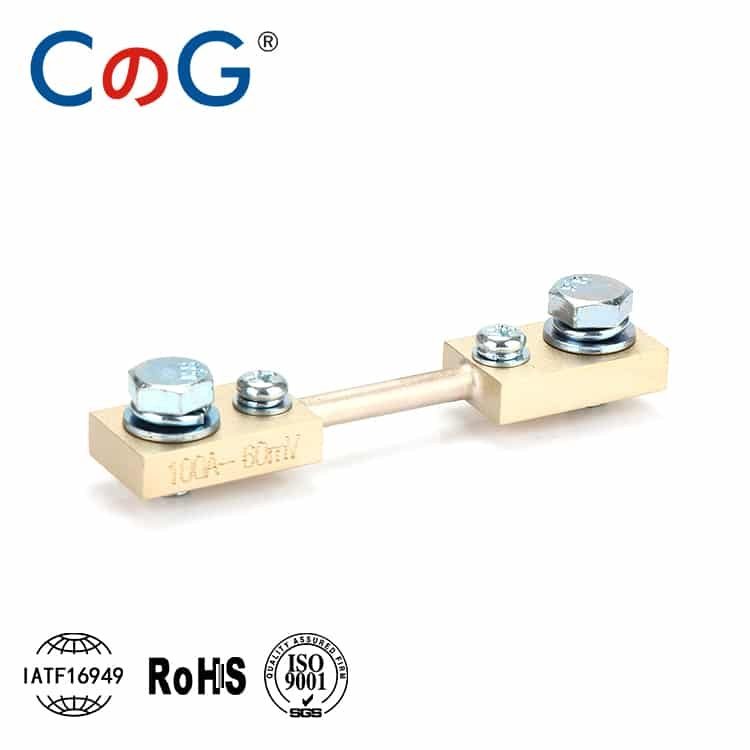

FL-2D Din Shunts Series 100A
The FL-2D Din Shunts Series 100A is designed for precision DC current measurement in line with the DIN 43703 German standard, offering stable and compact integration for 100A loads. It features a standard ±0.1% accuracy and optional high-precision versions of ±0.05% or ±0.01%, making it ideal for demanding energy monitoring environments.
With a low resistance value of 0.75mΩ and a thermally stable manganin element, this model minimizes power loss while ensuring long-term reliability. Its DIN-standard form factor allows quick installation into control panels, power supplies, solar inverters, BMS units, and compact power control systems where accurate measurement is crucial.
| Parameter | Specification |
|---|---|
| Model | FL-2D Din Shunts Series 100A |
| Standard | DIN 43703 (German Mounting Format) |
| Rated Current | 100A |
| Voltage Drop | 75mV (customizable to 50mV or 100mV) |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Resistance Value | 0.75mΩ (based on 75mV/100A) |
| Mounting Type | Bolt-on / Panel mount (DIN rail compatible) |
| Temperature Coefficient | ≤ 50 ppm/°C |
| Operating Temperature | -40°C to +85°C |
| Material | Manganin resistive element + copper ends |
| Compliance | ISO9001, CE, RoHS |
