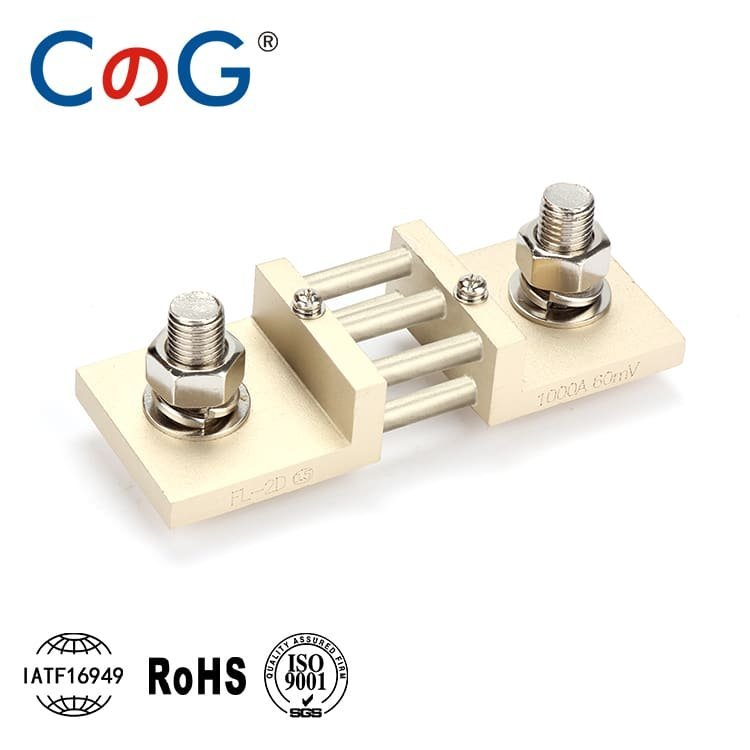

FL-2D Din Shunts Series 1000A
The FL-2D Din Shunts Series 1000A is a high-performance DC current shunt built to the DIN 43703 German Standard, engineered for accurate 1000A current measurement in high-power applications. It delivers ±0.1% standard accuracy, with optional upgrades to ±0.05% or ±0.01%, supporting demanding power monitoring tasks.
Featuring a low resistance of 0.075mΩ (75mV at 1000A), this model minimizes power loss and thermal buildup while ensuring signal stability. Its compact DIN-compliant format makes it easy to integrate into EV drive systems, battery packs, solar infrastructure, UPS cabinets, and industrial energy platforms. Constructed with a stable manganin resistive element and solid copper terminals, the FL-2D 1000A model is ideal for long-term, high-reliability current sensing.
| Parameter | Specification |
|---|---|
| Model | FL-2D Din Shunts Series 1000A |
| Standard | DIN 43703 (German Mounting Format) |
| Rated Current | 1000A |
| Voltage Drop | 75mV (customizable to 50mV / 100mV) |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Resistance Value | 0.075mΩ (based on 75mV/1000A) |
| Mounting Type | Panel-mount / Bolt-on (DIN 43703 compliant) |
| Temperature Coefficient | ≤ 50 ppm/°C |
| Operating Temperature | -40°C to +85°C |
| Material | Manganin resistive alloy + copper terminals |
| Compliance | ISO9001, CE, RoHS |
To explore more models from the FL-2D Din Shunt Series, click here and discover the right solution for your application.
