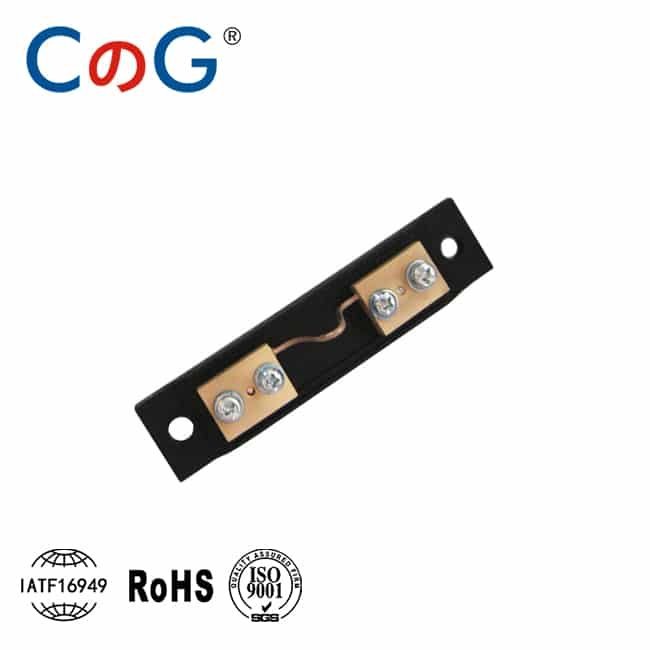

FL-2D Din Shunts Series 1-25A
The FL-2D Din Shunts Series 1-25A is a precision-engineered current shunt designed in compliance with DIN 43703 German Standard, making it ideal for compact and accurate DC current measurement in low-current applications. With standard ±0.1% accuracy and optional ranges of ±0.05% or ±0.01%, this series offers excellent stability and low resistance output across 1A to 25A current levels.
Built with high-quality manganin resistive elements and durable copper terminals, FL-2D shunts ensure minimal temperature drift and long-term reliability. The standardized dimensions allow for easy replacement and integration into control panels, power supply systems, instrumentation circuits, and industrial energy monitoring setups.
| Parameter | Specification |
|---|---|
| Model | FL-2D Din Shunts Series 1-25A |
| Standard | DIN 43703 (German Mounting Standard) |
| Rated Current Range | 1A to 25A |
| Voltage Drop | 75mV (optional: 50mV / 100mV) |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Resistance Range | 3mΩ to 75mΩ (depends on current rating) |
| Mounting Type | Bolt-on / Panel-mount via DIN form factor |
| Temperature Coefficient | ≤ 50 ppm/°C |
| Operating Temperature | -40°C to +85°C |
| Material | Manganin element + copper terminals |
| Compliance | ISO9001, CE, RoHS |
To explore more models from the FL-2D Din Shunt Series, click here and discover the right solution for your application.
