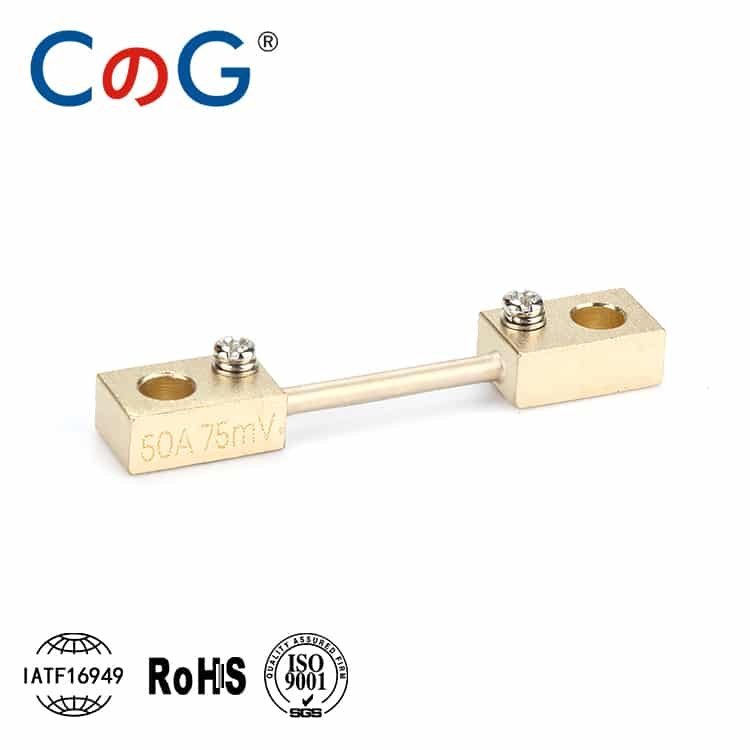

FL-2D Din Shunt Series 50A
The FL-2D Din Shunts Series 50A is a high-precision DC current measurement component built to the DIN 43703 German Standard, offering reliable performance for 50A applications. Featuring a standard ±0.1% accuracy and optional higher-precision variants (±0.05% / ±0.01%), this shunt ensures minimal power loss and stable output in continuous-use environments.
Constructed with a high-stability manganin resistive element and solid copper terminals, the FL-2D 50A model offers low resistance (1.5mΩ) and excellent thermal behavior. The DIN-standard form factor enables seamless integration into industrial control panels, battery systems, power meters, and automation equipment, making it ideal for applications requiring precision and durability in a compact footprint.
| Parameter | Specification |
|---|---|
| Model | FL-2D Din Shunt Series 50A |
| Standard | DIN 43703 (German Form Factor) |
| Rated Current | 50A |
| Voltage Drop | 75mV standard (optional 50mV, 100mV) |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Resistance Value | 1.5mΩ (based on 75mV/50A) |
| Mounting Type | Bolt-on / Panel mount (DIN format) |
| Temperature Coefficient | ≤ 50 ppm/°C |
| Operating Temperature | -40°C to +85°C |
| Material | Manganin element + copper terminals |
| Compliance | ISO9001, CE, RoHS |
To explore more models from the FL-2D Din Shunt Series, click here and discover the right solution for your application.
