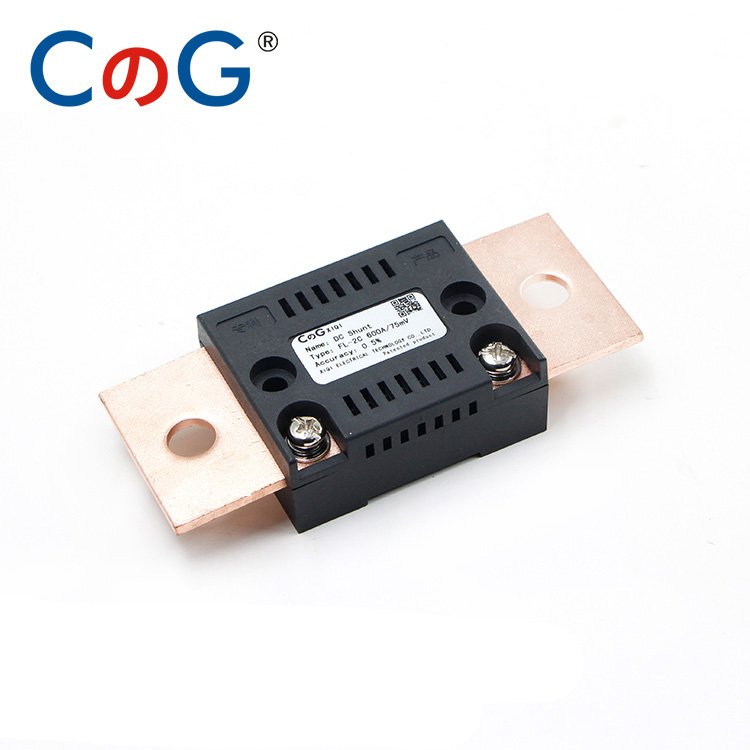

FL-2C Patent Shunt 600A
The FL-2C Patent Shunt 600A is a compact and high-accuracy DC current sensing component, built for electric vehicles, UPS systems, and renewable power setups. It offers a 75mV standard output and ±0.1% measurement accuracy, ensuring consistent performance under continuous high-load operation.
Manufactured using manganin resistive alloy and brass end terminals, this patented model minimizes thermal drift and improves system integration efficiency. It supports custom resistance values, voltage drop outputs, and terminal configurations, with overload handling up to 120% of rated current.
| Parameter | Specification |
|---|---|
| Model | FL-2C Patent Shunt 600A |
| Rated Current | 600A |
| Voltage Drop | 75mV |
| Resistance Value | 0.125mΩ |
| Accuracy Class | ±0.1% |
| Material | Manganin + brass terminals |
| Overload Capacity | 120% rated current for 2 hours |
| Mounting Type | Panel/bolt-type |
| Temperature Range | -40°C to +85°C |
| Customization | Output voltage, resistance, terminal layout |
| Compliance | ISO9001, CE, RoHS |
To explore more models from the FL-2C Patent, click here and discover the right solution for your application.
