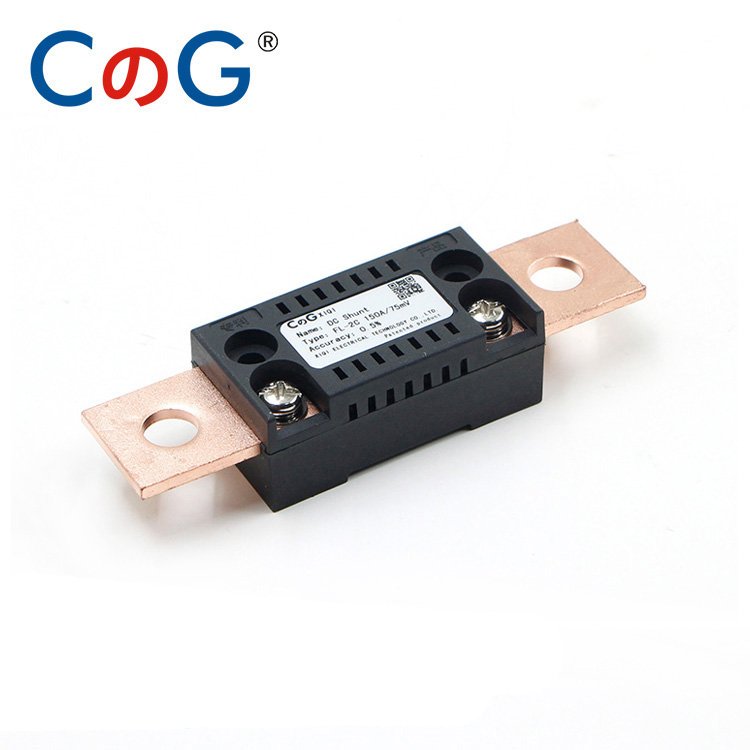

FL-2C Patent Shunt 150A
The FL-2C Patent Shunt 150A is a compact, patented high-precision current sensor designed for use in electric vehicles, energy storage systems, UPS, and solar applications. Offering a stable 75mV voltage drop and ±0.1% accuracy, this model delivers high-resolution current measurement in a space-saving form factor.
Its innovative patented structure integrates brass terminals and a manganin resistive element to minimize thermal drift and contact resistance. The robust design supports 120% overload for 2 hours and ensures long-term stability under challenging electrical conditions.
| Parameter | Specification |
|---|---|
| Model | FL-2C Patent Shunt 150A |
| Rated Current | 150A |
| Voltage Drop | 75mV |
| Resistance Value | 0.5mΩ |
| Accuracy Class | ±0.1% |
| Material | Manganin resistive core + brass terminals |
| Overload Capacity | 120% rated current for 2 hours |
| Mounting Type | Panel or bolt-on terminal |
| Temperature Range | -40°C to +85°C |
| Compliance | ISO9001, CE |
To explore more models from the FL-2C Patent, click here and discover the right solution for your application.
