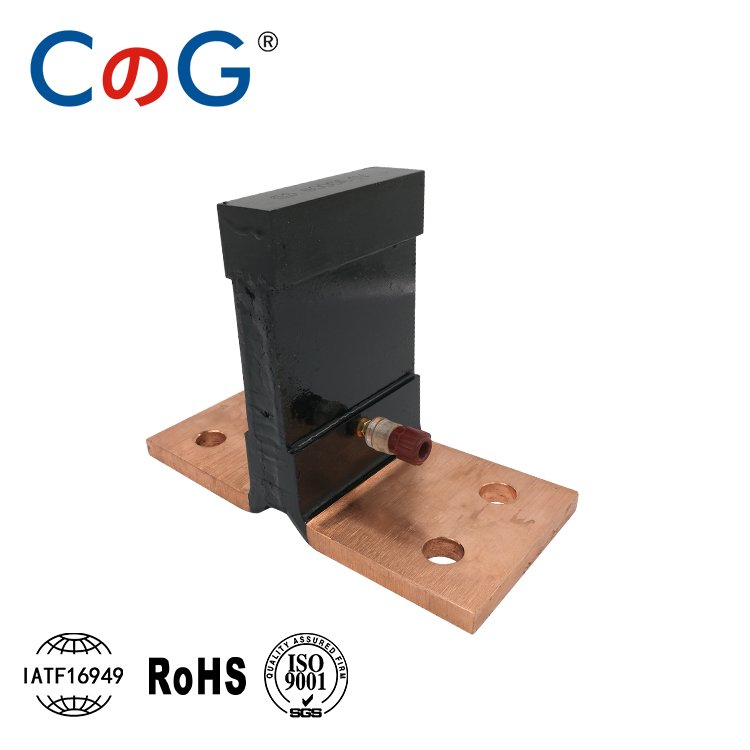

FL-28 High Accuracy Shunt 6000A
The FL-28 High Accuracy Shunt 6000A is a high-power DC shunt, engineered for precision current monitoring in ultra-high-load systems. It outputs 75mV at 6000A with a resistance of just 0.0125mΩ, ensuring ±0.2% accuracy while minimizing energy loss and heat buildup.
Its manganin alloy core is enclosed in a vented safety housing, enhancing thermal dissipation and structural reliability. Designed for long-term use in power stations, large ESS, DC feeders, and industrial grid infrastructure, this model supports customizations such as tighter precision (±0.1%) and varied terminal configurations.
The wide copper terminals enable secure bolt-on installation for stable operation even in high-vibration or mission-critical environments.
| Parameter | Specification |
|---|---|
| Model | FL-28 High Accuracy Shunt 6000A |
| Rated Current | 6000A |
| Voltage Drop | 75mV |
| Resistance | 0.0125mΩ |
| Accuracy Class | ±0.2% (optional ±0.1%) |
| Core Material | Manganin resistive alloy |
| Structure Type | Type B (vented enclosure, insulated) |
| Terminal Type | Heavy copper busbar |
| Mounting Style | Panel bolt-on |
| Application | ESS, power stations, DC grids, industrial load |
| Compliance | ISO9001, CE |
