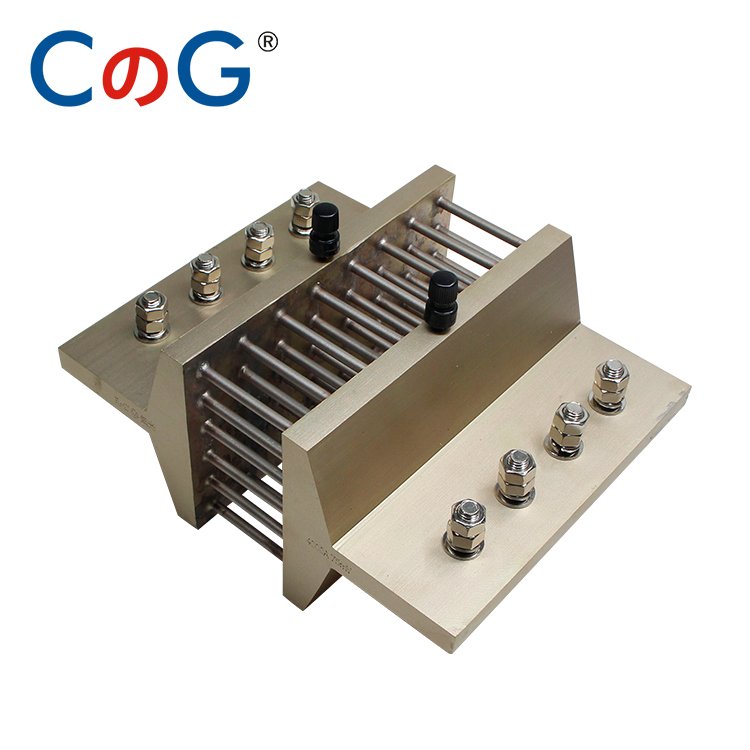

FL-27 High Accuracy 4000A 0.002
The FL-27 High Accuracy 4000A 0.002 shunt is built for high-current industrial DC systems, offering stable and precise 75mV output with ±0.2% measurement tolerance. With a resistance value of 0.01875mΩ, it minimizes power loss while ensuring accurate sensing under extreme load conditions.
Ideal for power grid monitoring, industrial energy meters, large battery storage systems, and test platforms, this shunt uses a manganin resistive core for low temperature drift and consistent performance over time.
The rugged panel-mount construction supports secure connections, and its precision class makes it compliant with high-end metrology and calibration environments.
| Parameter | Specification |
|---|---|
| Model | FL-27 High Accuracy 4000A 0.2% |
| Rated Current | 4000A |
| Voltage Drop | 75mV |
| Resistance Value | 0.01875mΩ |
| Accuracy Class | ±0.2% |
| Material | Manganin alloy + copper/brass terminals |
| Mounting | Panel / screw terminal |
| Application | Grid power, heavy DC loads, industrial meters |
| Operating Temp | -20°C to +60°C |
| Compliance | ISO9001, CE |
