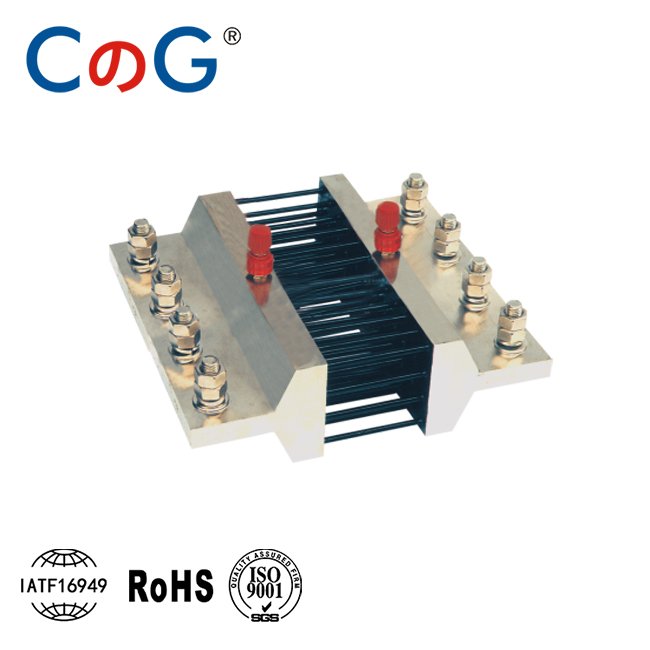

FL-27 High Accuracy 4000A
The FL-27 High Accuracy 4000A DC shunt is built for ultra-high current sensing applications such as energy storage stations, power grid monitoring, and heavy-duty DC equipment. With a 75mV output and ±0.2% accuracy, this model ensures precise and low-loss current measurement.
Featuring a resistance of just 0.01875mΩ, it minimizes energy consumption and thermal impact even at full 4000A load. The shunt is constructed from manganin resistive alloy for low temperature drift and long-term stability.
Its robust screw-mount structure supports secure installation in high-vibration or mission-critical systems. It can be tailored for different accuracy classes, terminal orientations, or output voltages based on application needs.
| Parameter | Specification |
|---|---|
| Model | FL-27 High Accuracy 4000A |
| Rated Current | 4000A |
| Voltage Drop | 75mV |
| Resistance Value | 0.01875mΩ |
| Accuracy Class | ±0.2% (optional ±0.1%, ±0.05%) |
| Material | Manganin core + copper/brass terminals |
| Mounting Type | Panel / screw-mount |
| Application | ESS, grid monitoring, industrial DC systems |
| Compliance | ISO9001, CE |
