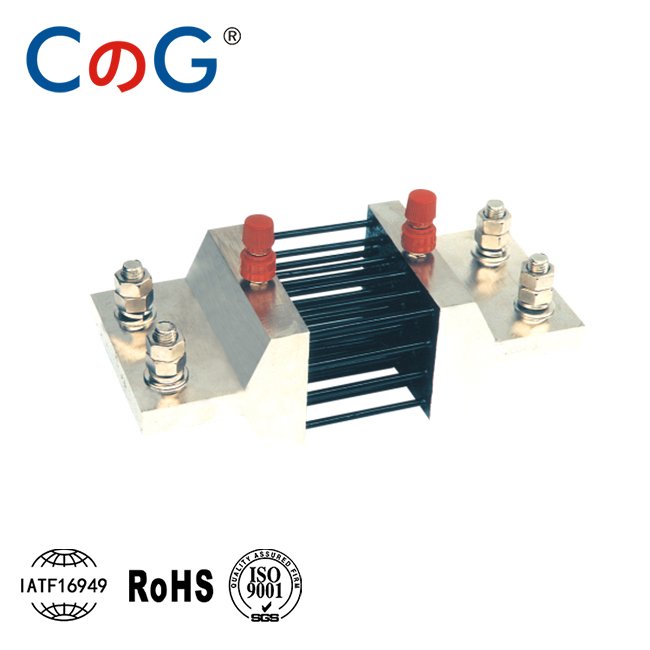

FL-27 High Accuracy 2000A
The FL-27 High Accuracy 2000A DC shunt is designed for precision current measurement in high-load industrial applications. Featuring a 75mV output and 0.0375mΩ resistance, it ensures ±0.2% accuracy while maintaining low thermal drift and minimal energy loss.
Built from manganin alloy, this shunt supports stable performance under continuous current flow, making it perfect for energy storage systems (ESS), UPS infrastructure, DC distribution cabinets, and industrial automation panels.
Its robust panel-mount design ensures secure and long-term installation, while customization options like ±0.1% or ±0.05% accuracy, terminal variations, and resistance values offer flexibility for OEM integration.
| Parameter | Specification |
|---|---|
| Model | FL-27 High Accuracy 2000A |
| Rated Current | 2000A |
| Voltage Drop | 75mV |
| Resistance Value | 0.0375mΩ |
| Accuracy Class | ±0.2% (optional ±0.1% / ±0.05%) |
| Material | Manganin resistive core + copper terminals |
| Mounting Type | Panel / screw-mount |
| Application | UPS, ESS, DC metering, industrial systems |
| Compliance | ISO9001, CE |
