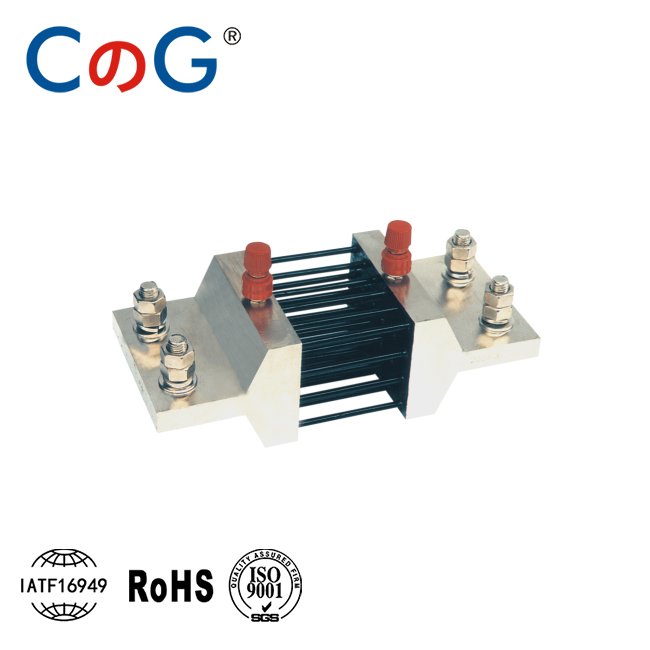

FL-27 High Accuracy 1500A
The FL-27 High Accuracy 1500A DC shunt delivers stable 75mV output and ±0.2% precision, making it a dependable choice for high-current industrial systems. With a resistance of 0.05mΩ, it minimizes energy loss while providing precise real-time current data.
Engineered with a manganin resistive core, this model ensures consistent performance under thermal and electrical stress, making it ideal for energy storage systems, UPS units, large DC power supplies, and power quality monitoring platforms.
The durable panel-mount construction and copper terminals support secure, long-term installations in harsh or mission-critical environments. Custom options are available for tighter tolerance and varied terminal configurations.
| Parameter | Specification |
|---|---|
| Model | FL-27 High Accuracy 1500A |
| Rated Current | 1500A |
| Voltage Drop | 75mV |
| Resistance Value | 0.05mΩ |
| Accuracy Class | ±0.2% (optional ±0.1% / ±0.05%) |
| Material | Manganin alloy + copper/brass terminals |
| Mounting Type | Panel / screw-mount |
| Application | UPS, ESS, DC metering, heavy industrial loads |
| Compliance | ISO9001, CE |
To explore more models from the FL-27 High Accuracy Type, click here and discover the right solution for your application.
