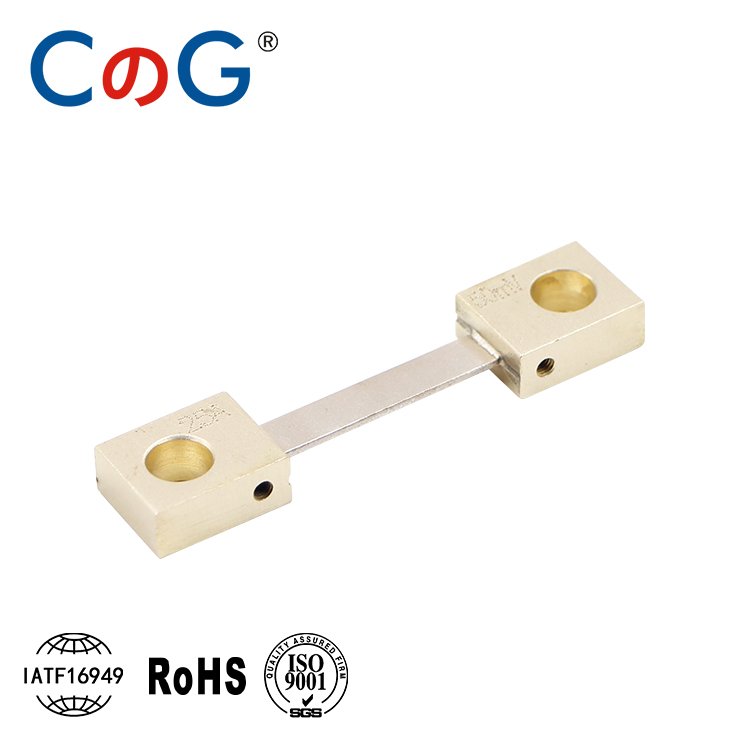

FL 25A 50mV Customed Circuit Board Shunt
The FL 25A 50mV Customed Circuit Board Shunt is a precision-engineered PCB-mounted current sensor designed for low-to-medium current applications. With a 50mV output at 25A and a resistance of 2mΩ, this model offers high-resolution current monitoring with minimal voltage drop and heat buildup.
Optimized for use in battery protection circuits, DC converters, microcontrollers, and smart electronics, the shunt’s manganin core ensures exceptional thermal stability and long-term accuracy. The compact footprint and pin-through PCB design allow for easy integration into high-density layouts.
Customization options include terminal layout, resistance values, mounting style, and precision class (standard ±0.1%, optional ±0.05% or ±0.01%), making it a versatile choice for OEM developers requiring reliable embedded current sensing.
| Parameter | Specification |
|---|---|
| Model | FL 25A 50mV Customed Circuit Board Shunt |
| Rated Current | 25A |
| Voltage Drop | 50mV |
| Resistance Value | 2mΩ |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Mounting Type | PCB mount / Pin-through / SMD (optional) |
| Material | Manganin resistive alloy + tinned copper |
| Application | BMS, power boards, portable DC systems |
| Operating Temp | -40°C to +105°C |
| Compliance | ISO9001, RoHS |
