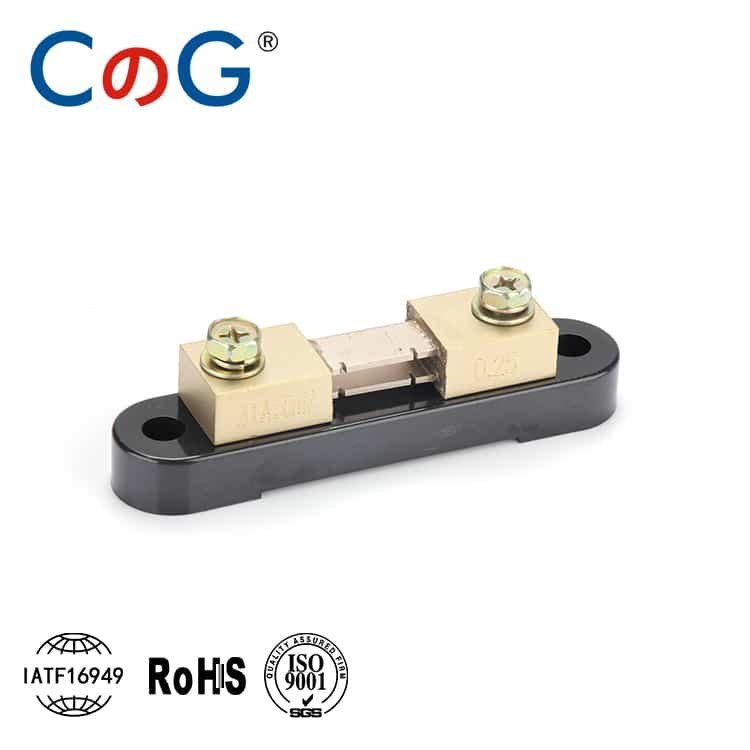

FL-21 Export DC Shunts 200A
The FL-21 Export DC Shunts 200A is a Taiwan-standard 75mV DC current shunt designed for export applications requiring precise current measurement in compact form. Engineered to provide ±0.1% accuracy at 200A, this model supports stable signal output for energy meters, battery management systems, UPS devices, and DC power controllers.
It features a low resistance value of 0.375mΩ, ensuring minimal voltage drop and reduced power loss. The core resistive element is made of high-grade manganin, offering excellent temperature stability and low thermal drift over long periods. The robust copper/brass terminals support bolt-on installation for fast, secure integration.
Trusted by OEMs and industrial customers exporting to Southeast Asia, the Middle East, and Eastern Europe, the FL-21 200A model is built for both compliance and performance in demanding DC monitoring systems.
| Parameter | Specification |
|---|---|
| Model | FL-21 Export DC Shunts 200A |
| Standard | Taiwan Type / Export-Grade |
| Rated Current | 200A |
| Voltage Drop | 75mV |
| Resistance Value | 0.375mΩ |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Material | Manganin resistive core + copper/brass ends |
| Mounting Type | Bolt-on / Panel-mounted |
| Operating Temperature | -40°C to +85°C |
| Temperature Coefficient | ≤ 50 ppm/°C |
| Compliance | ISO9001, CE, RoHS |
To explore more models from the FL-21 Export DC Shunts, click here and discover the right solution for your application.
