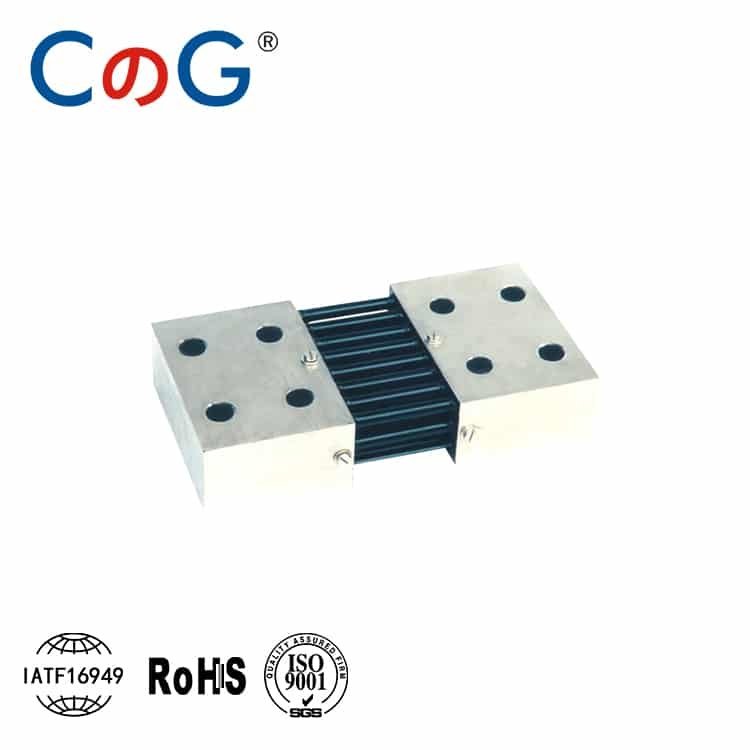

FL-21 Export DC Shunts 2000 to 2500A
The FL-21 Export DC Shunts 2000 to 2500A is a high-current DC shunt designed for export markets requiring Taiwan standard compatibility and precise performance. Available with a stable 75mV output, it supports heavy-load current sensing while minimizing power loss through ultra-low resistance—ranging from 0.0375mΩ (2000A) to 0.03mΩ (2500A).
This model is ideal for integration into high-capacity battery storage systems, UPS units, industrial power converters, and large-scale solar or EV platforms. Engineered with a high-stability manganin element and durable copper terminals, it provides long-term thermal reliability and repeatable measurement accuracy.
The FL-21 2000–2500A series is commonly used by exporters targeting Asia, the Middle East, and global markets requiring Taiwan-type mounting formats and specifications.
| Parameter | Specification |
|---|---|
| Model | FL-21 Export DC Shunts 2000 to 2500A |
| Standard | Taiwan Type / Export-Grade |
| Rated Current | 2000A to 2500A |
| Voltage Drop | 75mV |
| Resistance Value | 0.0375mΩ (2000A) ~ 0.03mΩ (2500A) |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Material | Manganin resistive core + copper terminals |
| Mounting Type | Bolt-on / Custom export mount |
| Operating Temperature | -40°C to +85°C |
| Temperature Coefficient | ≤ 50 ppm/°C |
| Compliance | ISO9001, CE, RoHS |
To explore more models from the FL-21 Export DC Shunts, click here and discover the right solution for your application.
