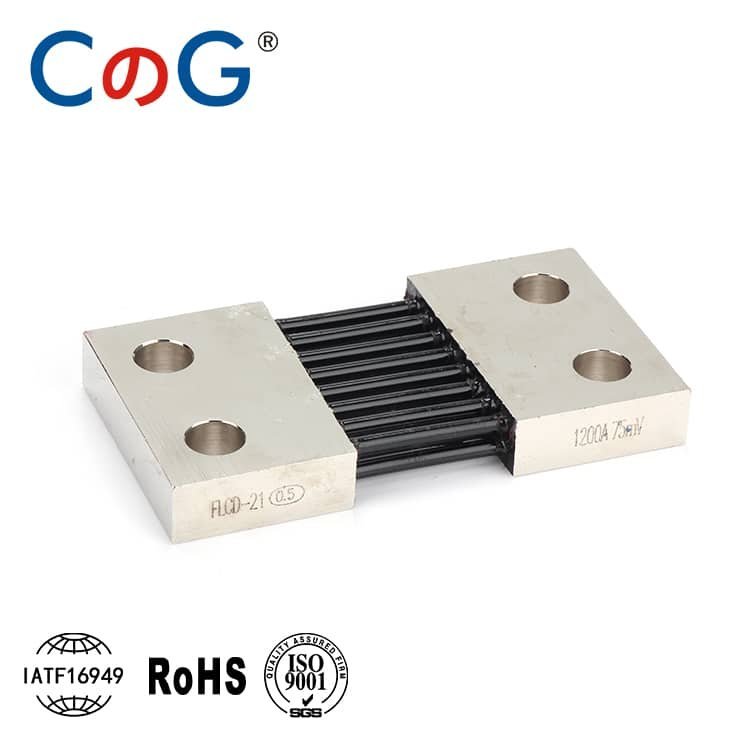

FL-21 Export DC Shunts 1200A
The FL-21 Export DC Shunts 1200A is a Taiwan-standard DC current shunt designed for export-oriented applications requiring stable 75mV output at high current levels. With a precise ±0.1% accuracy and a low resistance value of 0.0625mΩ, it ensures minimal energy loss while maintaining signal fidelity in demanding systems.
This model is ideal for use in BMS modules, solar inverters, electric vehicle infrastructure, UPS backup units, and industrial power controls. The high-conductivity copper/brass terminals and a manganin resistive core ensure excellent thermal stability, long service life, and dependable performance under full-load conditions.
Trusted by global OEMs exporting to markets requiring Taiwan-type electrical formats, the FL-21 1200A model supports bolt-on integration into custom and standard DC monitoring platforms.
| Parameter | Specification |
|---|---|
| Model | FL-21 Export DC Shunts 1200A |
| Standard | Taiwan Type / Export-Grade |
| Rated Current | 1200A |
| Voltage Drop | 75mV |
| Resistance Value | 0.0625mΩ |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Material | Manganin resistive element + copper terminals |
| Mounting Type | Bolt-on / Panel-mounted |
| Operating Temperature | -40°C to +85°C |
| Temperature Coefficient | ≤ 50 ppm/°C |
| Compliance | ISO9001, CE, RoHS |
