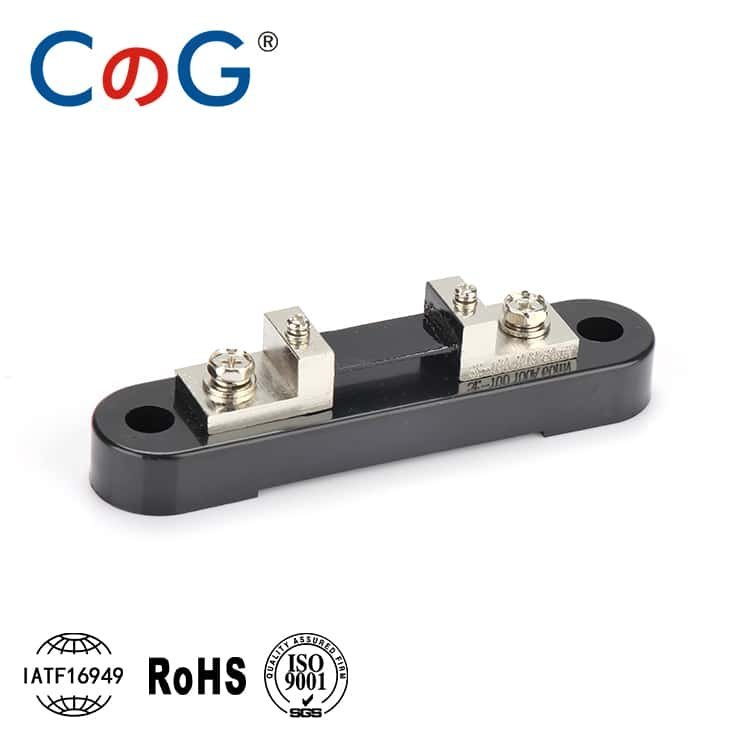

FL-21 Export DC Shunts 100A
The FL-21 Export DC Shunts 100A is a precision DC current shunt designed to meet Taiwan standard specifications, widely used in export markets across Asia, the Middle East, and Europe. Delivering a stable 75mV output at 100A with ±0.1% accuracy, this model is ideal for integration into energy meters, power control units, battery monitoring, and industrial DC systems.
Constructed with a high-stability manganin resistive element and reinforced copper/brass terminals, it ensures low resistance (~0.75mΩ), minimal power loss, and excellent long-term thermal performance. Its compact bolt-on format is compatible with a wide range of panel systems and instrumentation devices.
The FL-21 series is tailored for clients requiring regional compliance, offering stable output, strong anti-interference performance, and reliable signal delivery for long-term use.
| Parameter | Specification |
|---|---|
| Model | FL-21 Export DC Shunts 100A |
| Standard | Taiwan Type / Export-Grade |
| Rated Current | 100A |
| Voltage Drop | 75mV |
| Resistance Value | 0.75mΩ |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Material | Manganin resistive element + brass/copper |
| Mounting Type | Bolt-on / Panel mount |
| Operating Temperature | -40°C to +85°C |
| Temperature Coefficient | ≤ 50 ppm/°C |
| Compliance | ISO9001, CE, RoHS |
