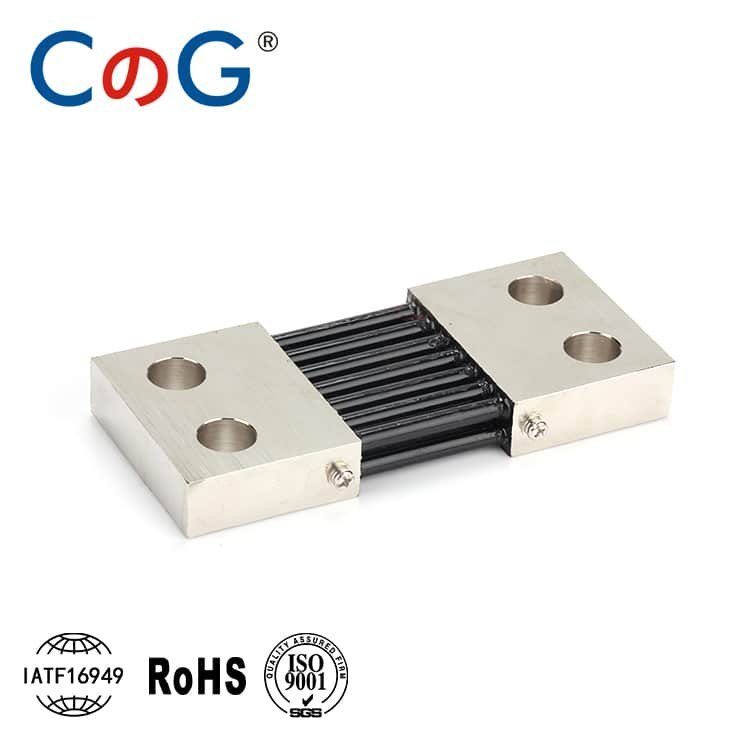

FL-21 Export DC Shunts 1000A
The FL-21 Export DC Shunts 1000A is engineered for accurate high-current DC measurement in export markets that require Taiwan-standard form and performance. With a 75mV output at 1000A and a low resistance value of 0.075mΩ, this shunt minimizes energy loss while delivering ±0.1% standard accuracy—upgradable to ±0.05% or ±0.01% for precision-critical applications.
Built with high-stability manganin and reinforced copper terminals, it performs reliably under long-term thermal stress and heavy current loads. The FL-21 1000A model is ideal for battery systems, UPS backup, EV infrastructure, solar converters, and industrial power controls.
Its bolt-on design ensures easy integration into international projects, especially where Taiwan-type dimensions and electrical standards are specified for compliance or compatibility.
| Parameter | Specification |
|---|---|
| Model | FL-21 Export DC Shunts 1000A |
| Standard | Taiwan Type / Export-Grade |
| Rated Current | 1000A |
| Voltage Drop | 75mV |
| Resistance Value | 0.075mΩ |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Material | Manganin core + copper/brass terminals |
| Mounting Type | Bolt-on / Panel-mount |
| Operating Temperature | -40°C to +85°C |
| Temperature Coefficient | ≤ 50 ppm/°C |
| Compliance | ISO9001, CE, RoHS |
