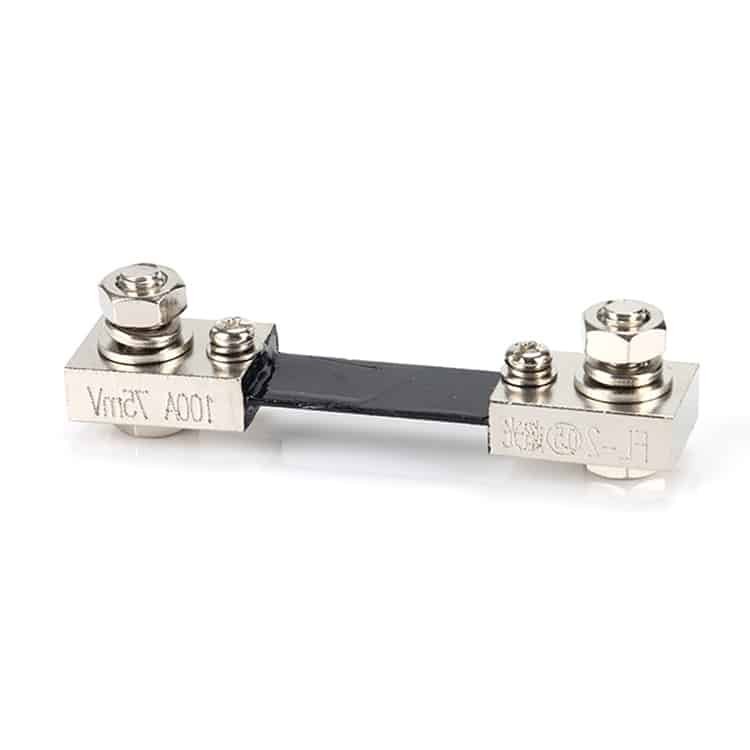

FL-2 DC Current Shunt Series 75/100A
The FL-2 DC Current Shunt Series 75/100A is a dual-capacity precision shunt designed for accurate current measurement at 75A or 100A outputs. Built for demanding power systems, it provides ±0.1% standard accuracy with optional upgrades to ±0.05% or ±0.01%.
This model offers a 75mV voltage drop and a resistance range of 1mΩ (for 75A) to 0.75mΩ (for 100A), minimizing energy loss while ensuring stable and consistent output. Its compact design and sturdy copper/manganin construction make it ideal for use in electric vehicles, battery monitoring systems, solar converters, UPS cabinets, and industrial automation setups.
The shunt is rigorously tested to ensure low temperature drift, long-term stability, and strong EMI resistance. It supports panel or bolt-mounting for easy system integration.
| Parameter | Specification |
|---|---|
| Model | FL-2 DC Current Shunt Series 75/100A |
| Rated Current | 75A / 100A |
| Voltage Drop | 75mV |
| Resistance Value | 1mΩ (75A), 0.75mΩ (100A) |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Material | Manganin resistive element + copper busbars |
| Temperature Coefficient | ≤ 50 ppm/°C |
| Operating Temperature | -40°C to +85°C |
| Mounting Type | Bolt-on / Panel mount |
| Compliance | ISO9001, CE, RoHS |
