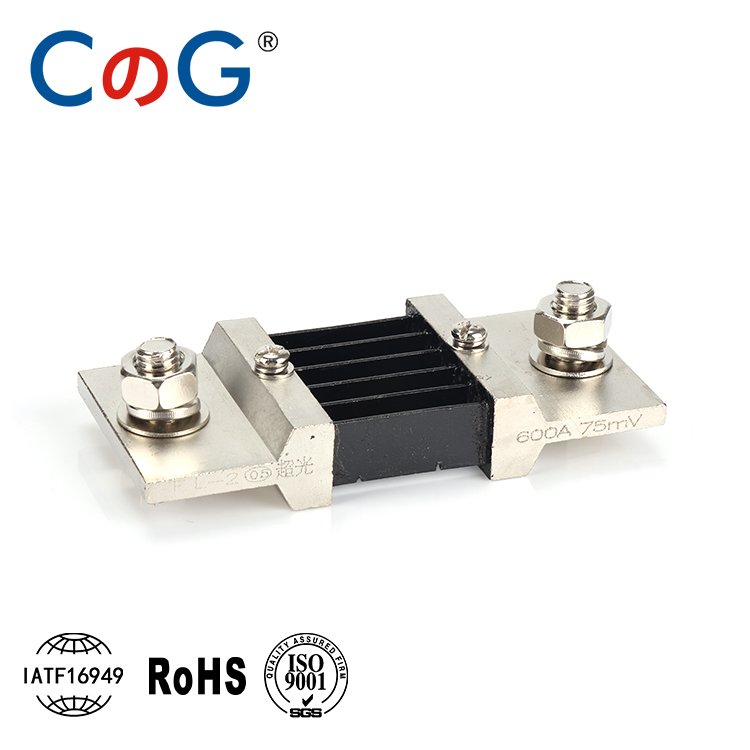

FL-2 DC Current Shunt Series 600A
The FL-2 DC Current Shunt Series 600A is designed for high-current DC measurement applications, delivering reliable ±0.1% accuracy with optional upgrades to ±0.05% or ±0.01%. Built with a precision manganin resistive element and copper terminals, this 600A shunt ensures ultra-low resistance (0.125mΩ), minimizing energy loss and heat generation. Its robust construction and compact, bolt-on design make it ideal for electric vehicle systems, solar power stations, BMS modules, UPS units, and industrial equipment requiring stable, long-term current monitoring.
| Parameter | Specification |
|---|---|
| Model | FL-2 DC Current Shunt Series 600A |
| Rated Current | 600A |
| Voltage Drop | 75mV (customizable) |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Resistance Value | 0.125mΩ (based on 75mV/600A) |
| Temperature Coefficient | ≤ 50 ppm/°C |
| Operating Temperature | -40°C to +85°C |
| Mounting Type | Bolt-on / Panel Mount |
| Material | Manganin resistive element + copper ends |
| Compliance | ISO9001, CE, RoHS |
