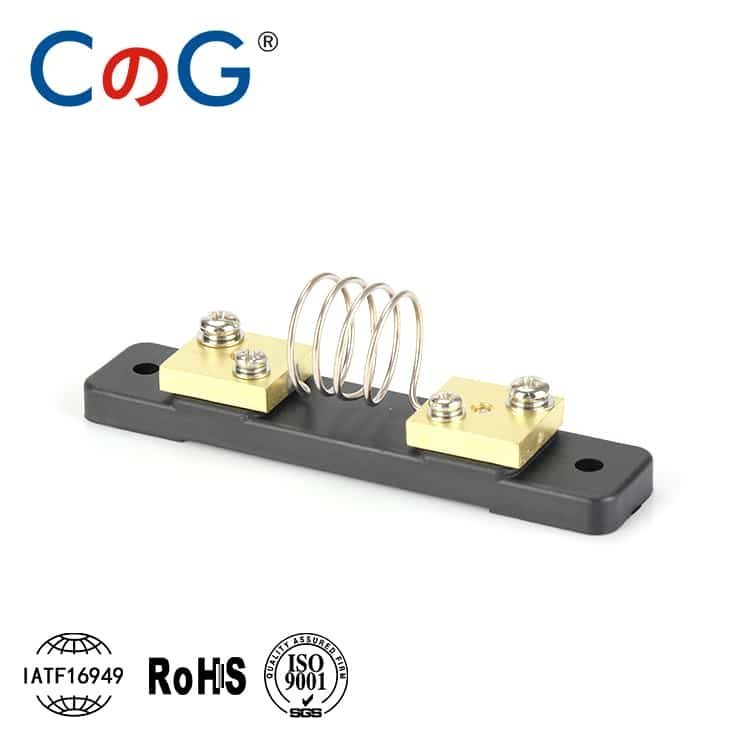

FL-2 DC Current Shunt Series 1A
The FL-2 1A DC Current Shunt Series is engineered for high-precision current measurement in demanding applications. With a low-resistance design, ±0.1% accuracy, and excellent long-term stability, it ensures reliable performance in battery management systems, electric vehicles, solar energy systems, and industrial controls. Its compact form factor makes it ideal for space-constrained integrations.
| Parameter | Specification |
|---|---|
| Model | FL-2 DC Current Shunt Series 1A |
| Rated Current | 1A |
| Rated Voltage Drop | 75mV (customizable) |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Resistance Value | 75mΩ (typical, based on 75mV/1A) |
| Temperature Coefficient | ≤ 50 ppm/°C |
| Operating Temperature | -40°C to +85°C |
| Mounting Type | Bolt-on / Panel Mount |
| Material | Manganin element with copper terminals |
| Compliance Standards | ISO9001, CE, RoHS |
