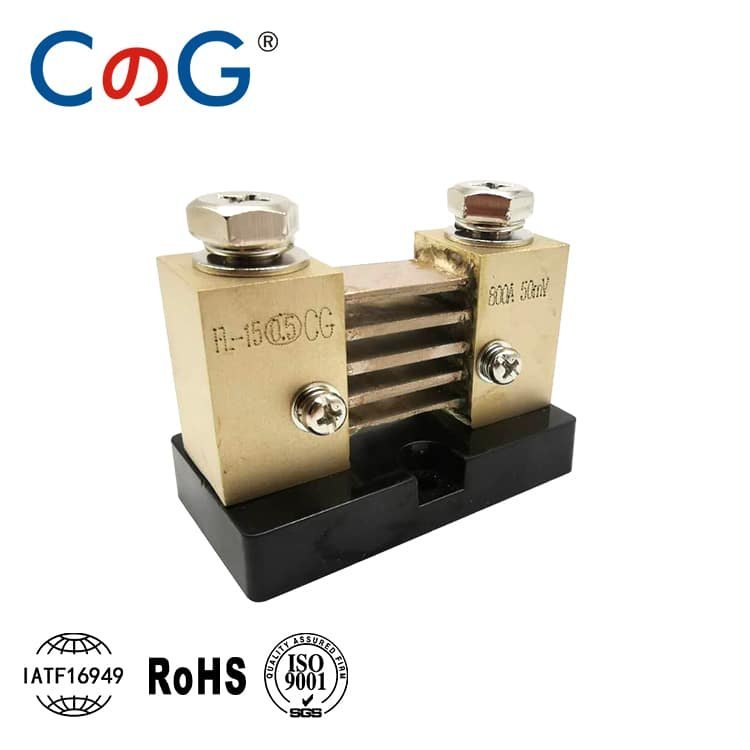

FL-15 USA DC Shunts Series 800A 50mV
The FL-15 USA DC Shunts Series 800A 50mV is a high-precision DC current shunt built to American ANSI standards, designed for accurate measurement of 800A currents with a 50mV output. It provides ±0.1% standard accuracy and supports optional upgrades to ±0.05% or ±0.01% for high-demand measurement applications.
With an ultra-low resistance of 0.0625mΩ, this shunt ensures minimal power loss and excellent thermal stability, even under continuous load. It is ideal for use in EV battery packs, BMS modules, UPS backup systems, high-power converters, and DC metering panels.
Constructed from high-stability manganin and durable copper terminals, the FL-15 800A 50mV model ensures long-term reliability and repeatable accuracy in industrial or mobile power environments. Its bolt-on mounting makes integration straightforward and secure.
| Parameter | Specification |
|---|---|
| Model | FL-15 USA DC Shunts Series 800A 50mV |
| Standard | U.S. ANSI / Industrial |
| Rated Current | 800A |
| Voltage Drop | 50mV |
| Resistance Value | 0.0625mΩ |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Material | Manganin resistive alloy + copper terminals |
| Mounting Type | Bolt-on / Panel-mounted |
| Operating Temperature | -40°C to +85°C |
| Temperature Coefficient | ≤ 50 ppm/°C |
| Compliance | ISO9001, CE, RoHS |
To explore more models from the FL-15 USA DC Shunts Series, click here and discover the right solution for your application.
