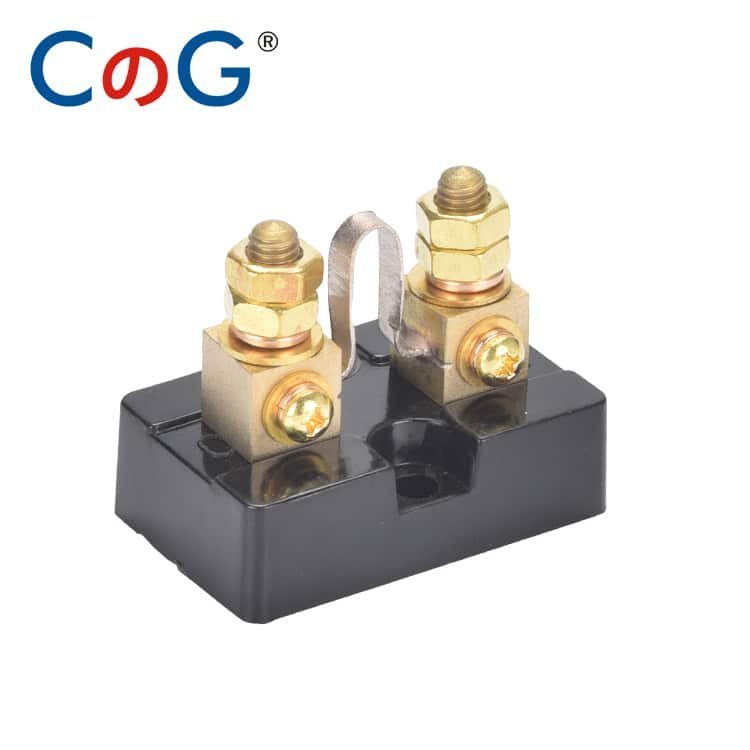

FL-15 USA DC Shunts Series 75 to 150A
The FL-15 USA DC Shunts Series 75 to 150A is engineered for mid-range DC current measurement, delivering stable 50mV or 75mV output with ±0.1% accuracy, compliant with American industrial standards. These shunts are ideal for precision monitoring in power meters, EV chargers, battery systems, and control panels.
With resistance values ranging from 0.667mΩ (75A @ 50mV) to 0.5mΩ (150A @ 75mV), this series ensures minimal voltage drop and power loss while providing accurate feedback in real time. Built with manganin elements and copper/brass terminals, each unit offers excellent thermal stability and long-term reliability under continuous operation.
Its compact bolt-on design supports easy integration into U.S. standard enclosures and electrical systems, making it suitable for both OEM and retrofit installations.
| Parameter | Specification |
|---|---|
| Model | FL-15 USA DC Shunts Series 75 to 150A |
| Standard | U.S. Industrial / ANSI |
| Rated Current | 75A to 150A |
| Voltage Drop | 50mV or 75mV |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Resistance Value | 0.667–0.5mΩ (depending on rating/output) |
| Mounting Type | Bolt-on / Panel-mount |
| Temperature Coefficient | ≤ 50 ppm/°C |
| Operating Temperature | -40°C to +85°C |
| Material | Manganin resistive core + copper/brass ends |
| Compliance | ISO9001, CE, RoHS |
