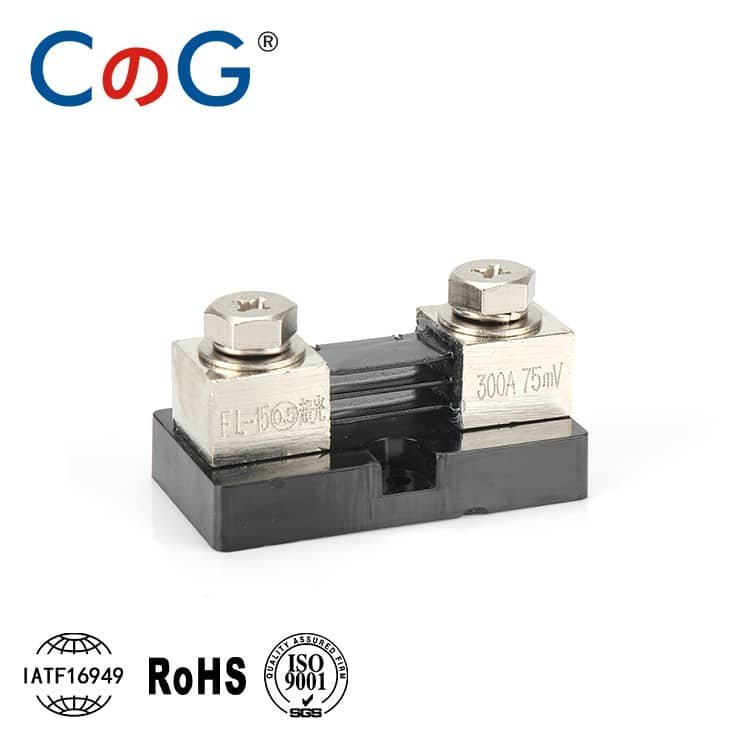

FL-15 USA DC Shunts Series 150 to 400A
The FL-15 USA DC Shunts Series 150 to 400A is built for mid-to-high range DC current sensing, delivering precise 75mV output with ±0.1% standard accuracy. This series is compliant with ANSI standards, making it a reliable solution for applications like EV chargers, UPS systems, BMS, and DC power distribution equipment.
With resistance values ranging from 0.5mΩ (150A/75mV) to 0.1875mΩ (400A/75mV), the shunts ensure minimal power loss and accurate signal transmission. Each unit is constructed with a high-stability manganin element and copper/brass terminals for long-term durability under heavy load.
Bolt-on installation ensures compatibility with U.S. industrial panel systems, and optional accuracy upgrades are available for precision-demanding scenarios.
| Parameter | Specification |
|---|---|
| Model | FL-15 USA DC Shunts Series 150 to 400A |
| Standard | ANSI / U.S. Industrial |
| Rated Current | 150A to 400A |
| Voltage Drop | 75mV |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Resistance Range | 0.5mΩ (150A) to 0.1875mΩ (400A) |
| Material | Manganin element + copper/brass terminals |
| Mounting Type | Bolt-on / Panel-mount |
| Operating Temperature | -40°C to +85°C |
| Temperature Coefficient | ≤ 50 ppm/°C |
| Compliance | ISO9001, CE, RoHS |
