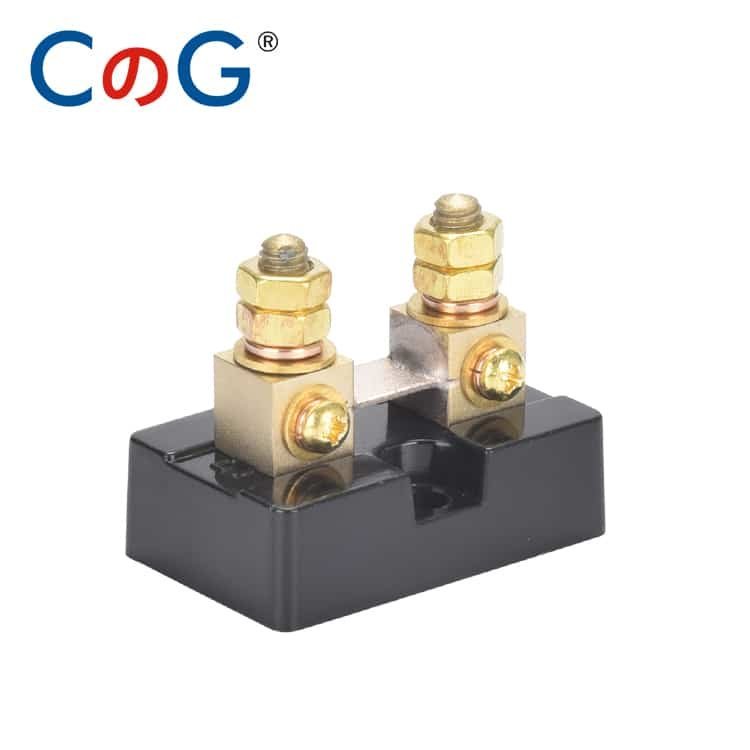

FL-15 USA DC Shunts Series 1 to 30A
The FL-15 USA DC Shunts Series 1 to 30A is a precision-engineered line of low-current DC shunts built to American electrical standards, commonly used in control panels, energy monitoring systems, and test instrumentation. Designed to deliver 50mV or 75mV output at rated current, this series supports high-accuracy applications with ±0.1% standard tolerance and optional ±0.05% or ±0.01% upgrades
Constructed with a stable manganin alloy resistive element and brass/copper terminals, the 1–30A range is optimized for small-load DC circuits where minimal resistance and thermal drift are critical. Each unit is calibrated and tested for long-term consistency and can be easily integrated into industrial measurement or lab-grade systems.
The compact size and through-hole mounting design ensure flexible installation across devices requiring accurate current monitoring in the 1A to 30A range.
| Parameter | Specification |
|---|---|
| Model | FL-15 USA DC Shunts Series 1 to 30A |
| Standard | U.S. Industrial / ANSI Format |
| Rated Current | 1A to 30A |
| Voltage Drop | 50mV or 75mV (customizable) |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Resistance Value | 1.67Ω (1A/50mV) to 2.5mΩ (30A/75mV) range |
| Mounting Type | Through-hole / Bolt-on |
| Temperature Coefficient | ≤ 50 ppm/°C |
| Operating Temperature | -40°C to +85°C |
| Material | Manganin resistive element + brass/copper |
| Compliance | ISO9001, CE, RoHS |
