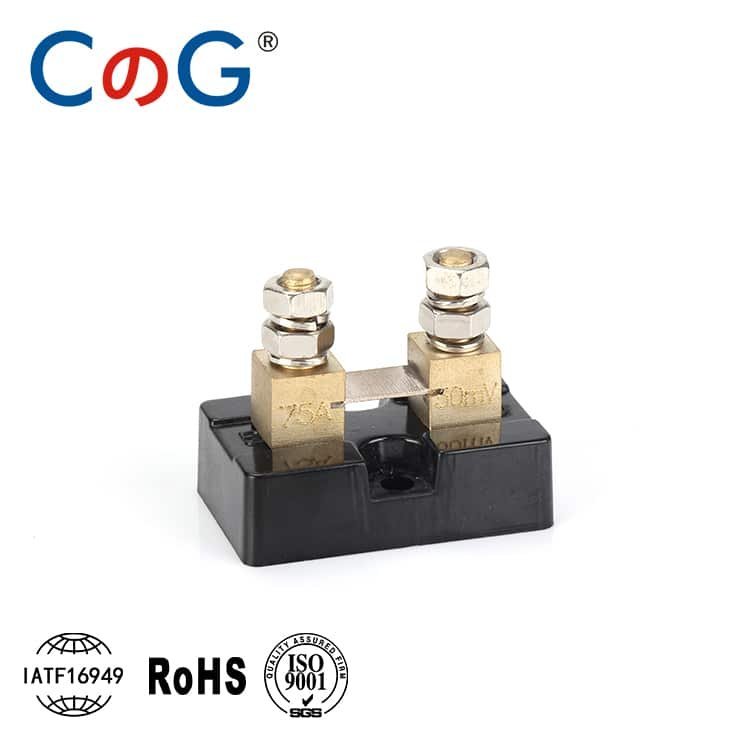

FL-15 USA DC Shunts Series 1 to 125A
The FL-15 USA DC Shunts Series 1 to 125A is designed for low-to-mid range DC current measurement, delivering high accuracy and stable performance in applications requiring compact size and U.S. ANSI standard compliance.
Available with 50mV or 75mV output options, this series supports rated currents from 1A up to 125A, with ±0.1% standard accuracy and optional enhanced precision at ±0.05% or ±0.01%. It is well-suited for test equipment, power meters, control units, energy monitoring systems, and instrumentation requiring consistent DC feedback.
The series utilizes a precision manganin resistive element and brass or copper terminals to maintain low temperature drift and excellent signal linearity. Its compact bolt-on form factor allows easy integration into standard electrical and monitoring systems.
| Parameter | Specification |
|---|---|
| Model | FL-15 USA DC Shunts Series 1 to 125A |
| Standard | ANSI / U.S. Industrial |
| Rated Current | 1A to 125A |
| Voltage Drop | 50mV or 75mV |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Resistance Range | 50mΩ (1A/50mV) to 0.6mΩ (125A/75mV) |
| Material | Manganin element + copper/brass ends |
| Mounting Type | Bolt-on / Panel-mounted |
| Operating Temperature | -40°C to +85°C |
| Temperature Coefficient | ≤ 50 ppm/°C |
| Compliance | ISO9001, CE, RoHS |
To explore more models from the FL-15 USA DC Shunts Series, click here and discover the right solution for your application.
