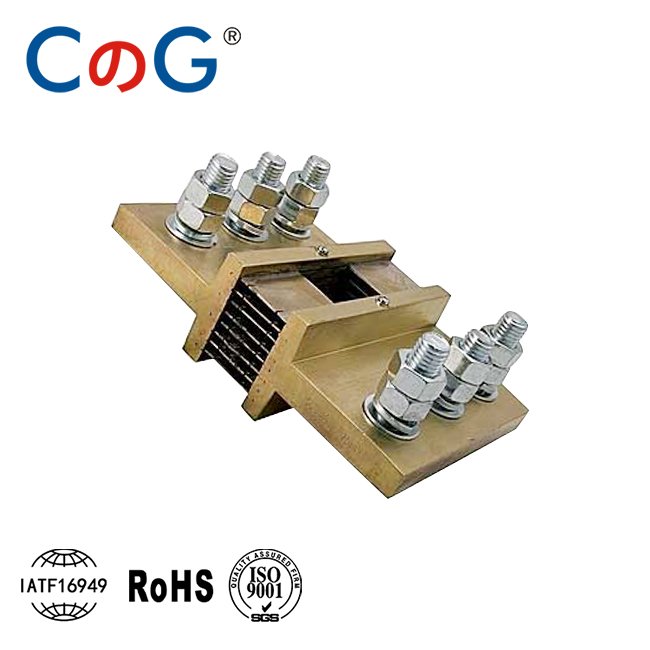

FL-13 Russia DC Shunts 5000 to 6000A
The FL-13 Russia DC Shunts 5000 to 6000A are engineered for ultra-high current DC measurement in environments such as energy storage plants, power substations, and heavy industrial systems. Delivering a consistent 75mV output and ±0.5% accuracy, these shunts are ideal for long-term monitoring in critical infrastructure.
Built from manganin resistive alloy with robust terminals, they ensure low temperature drift, high overload tolerance, and stable performance in demanding conditions. Custom configurations are available for resistance, voltage drop, and installation style.
| Parameter | Specification |
|---|---|
| Model | FL-13 Russia DC Shunts 5000 to 6000A |
| Current Range | 5000A – 6000A |
| Voltage Drop | 75mV (options: 60mV, 100mV, 150mV) |
| Accuracy | ±0.5% (upgradeable to ±0.1%) |
| Material | Manganin core, brass or copper alloy terminals |
| Mounting | Busbar or panel installation |
| Overload Capacity | 120% rated current for up to 2 hours |
| Applications | ESS, industrial power, grid substations, testing labs |
| Customization | Resistance, voltage drop, mounting layout |
To explore more models from the FL-13 Russia DC Shunts, click here and discover the right solution for your application.
