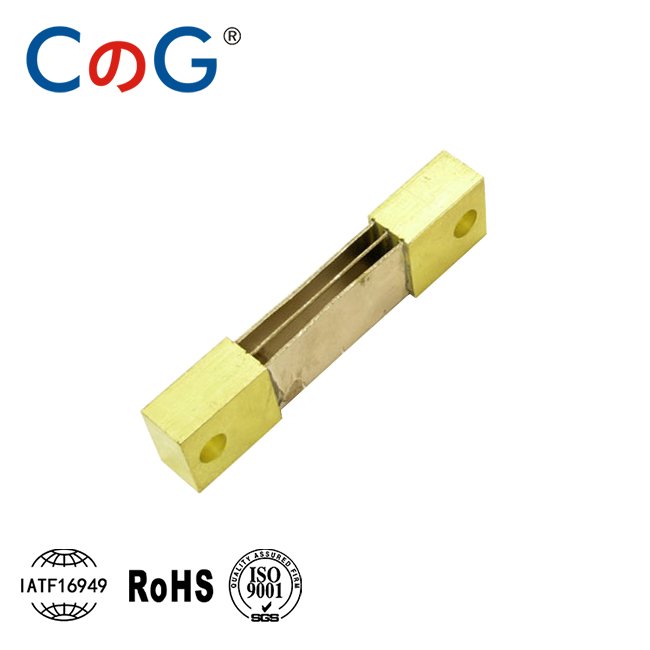

FL-13 Russia DC Shunts 300A
The FL-13 Russia DC Shunts 300A are designed for accurate current measurement in medium to high-current DC applications including EV charging modules, energy storage racks, and industrial control cabinets. These Russian-type shunts deliver a stable 75mV voltage drop with ±0.5% accuracy, ensuring reliable performance in power monitoring systems.
Made with manganin resistive elements and brass or copper alloy terminals, they offer low thermal drift, high conductivity, and support panel or busbar mounting. Voltage drop and resistance values can be customized to meet specific OEM requirements.
| Parameter | Specification |
|---|---|
| Model | FL-13 Russia DC Shunts 300A |
| Current Rating | 300A |
| Voltage Drop | 75mV (optional: 60mV, 100mV, 150mV) |
| Accuracy | ±0.5% (optional ±0.1%) |
| Resistive Core | Manganin |
| Terminal Material | Brass or nickel-plated copper |
| Mounting Method | Screw or panel-mounted |
| Overload Capacity | 120% rated current for 2 hours |
| Applications | EVs, ESS, solar, UPS, control systems |
| Customization | Resistance, voltage output, mechanical dimensions |
To explore more models from the FL-13 Russia DC Shunts, click here and discover the right solution for your application.
