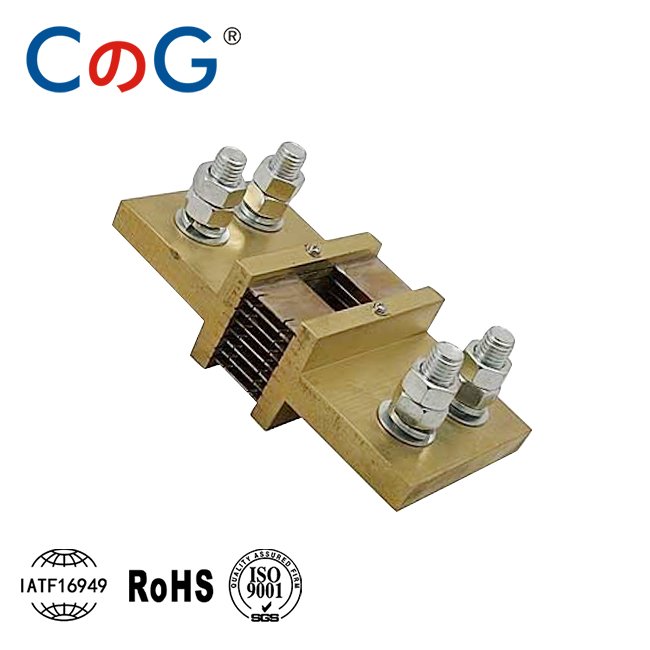

FL-13 Russia DC Shunts 2000 to 4000A
The FL-13 Russia DC Shunts 2000 to 4000A are heavy-duty shunts designed for large-scale DC current measurement in power grids, energy storage systems, and high-capacity UPS infrastructure. These shunts deliver a reliable 75mV output with ±0.5% accuracy, ensuring consistent readings under extreme load conditions.
Constructed from manganin alloy with brass or copper terminals, they feature high thermal stability and robust electrical performance. Suitable for panel or busbar mounting, and capable of handling 120% overload for extended periods. Custom configurations in voltage drop and resistance are available for OEM applications.
| Parameter | Specification |
|---|---|
| Model | FL-13 Russia DC Shunts 2000 to 4000A |
| Current Range | 2000A – 4000A |
| Voltage Drop | 75mV (optional: 60mV, 100mV, 150mV) |
| Accuracy | ±0.5% (optional: ±0.1%) |
| Material | Manganin resistive core, brass/copper terminals |
| Mounting | Panel or busbar mounting |
| Overload Capacity | 120% rated current for 2 hours |
| Applications | ESS, UPS, industrial DC systems, renewable power |
| Customization | Resistance value, voltage drop, layout options |
To explore more models from the FL-13 Russia DC Shunts, click here and discover the right solution for your application.
