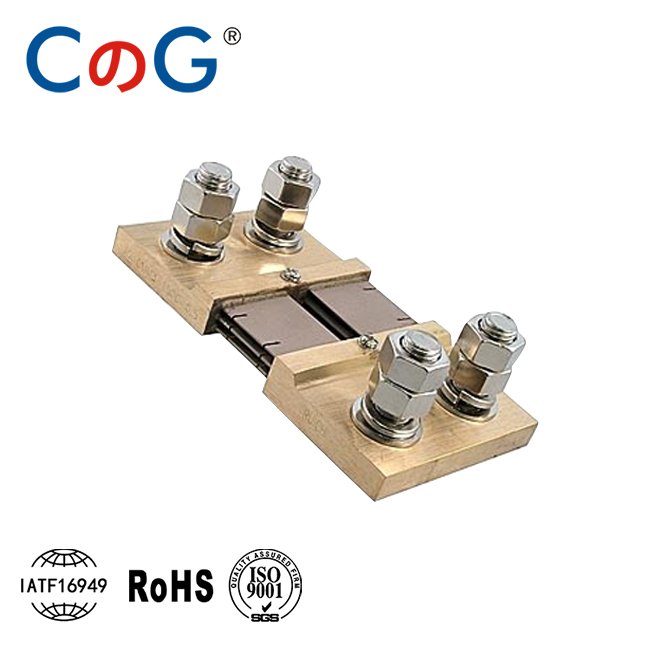

FL-13 Russia DC Shunts 1500A
The FL-13 Russia DC Shunts 1500A are designed for precision high-current monitoring in applications such as energy storage systems (ESS), electric vehicle power control, and high-capacity UPS infrastructure. These Russian-style shunts deliver a 75mV voltage drop with ±0.5% accuracy, ensuring consistent current sensing under demanding conditions.
Built from manganin resistive alloy and brass/copper terminals, the shunt offers excellent heat resistance and stability. It supports up to 120% overload and comes with flexible customization options, including voltage drop values, resistance configuration, and mounting design for seamless integration into industrial power systems.
| Parameter | Specification |
|---|---|
| Model | FL-13 Russia DC Shunts 1500A |
| Current Rating | 1500A |
| Voltage Drop | 75mV (optional: 60mV, 100mV, 150mV) |
| Accuracy | ±0.5% (optional: ±0.1%) |
| Material | Manganin core, brass or copper alloy terminals |
| Mounting | Screw/busbar installation |
| Overload Capacity | 120% rated current for 2 hours |
| Applications | EVs, BESS, UPS, solar inverters, high-voltage cabinets |
| Customization | Output voltage, resistance, terminal layout |
To explore more models from the FL-13 Russia DC Shunts, click here and discover the right solution for your application.
