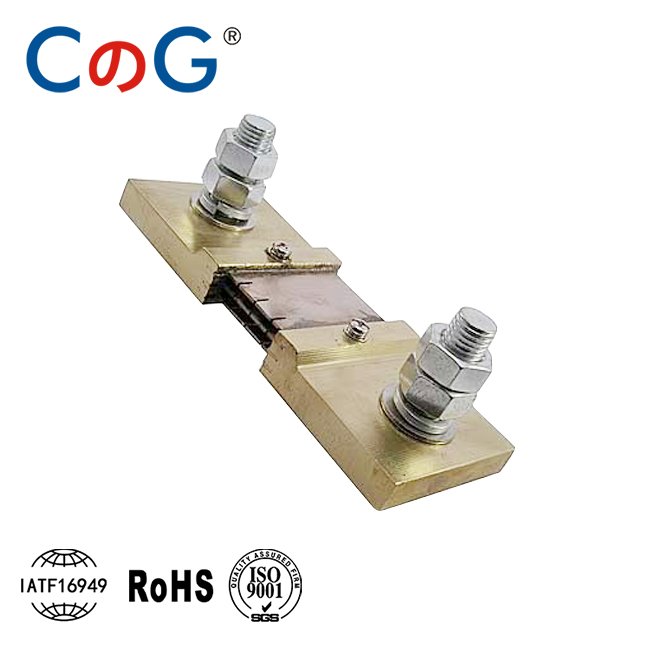

FL-13 Russia DC Shunts 1000A
The FL-13 Russia DC Shunts 1000A are high-capacity current sensing devices designed for use in energy storage systems (ESS), electric vehicles (EVs), and high-power UPS modules. With a standard 75mV output and ±0.5% measurement accuracy, this model delivers reliable performance for critical current monitoring.
Constructed from manganin resistive material with nickel-plated brass or copper terminals, it provides excellent thermal stability and low resistance drift. The panel or busbar mounting style ensures versatile installation in industrial settings. Voltage drop and resistance can be customized for specific project requirements.
| Parameter | Specification |
|---|---|
| Model | FL-13 Russia DC Shunts 1000A |
| Rated Current | 1000A |
| Voltage Drop | 75mV (customizable to 60mV, 100mV, etc.) |
| Accuracy | ±0.5% (optional ±0.1%) |
| Material | Manganin core, brass/copper terminals |
| Mounting Type | Screw/busbar panel mount |
| Overload Capacity | 120% rated current for 2 hours |
| Applications | ESS, EV charging systems, industrial DC distribution |
| Customization | Resistance value, output voltage, terminal layout |
To explore more models from the FL-13 Russia DC Shunts, click here and discover the right solution for your application.
