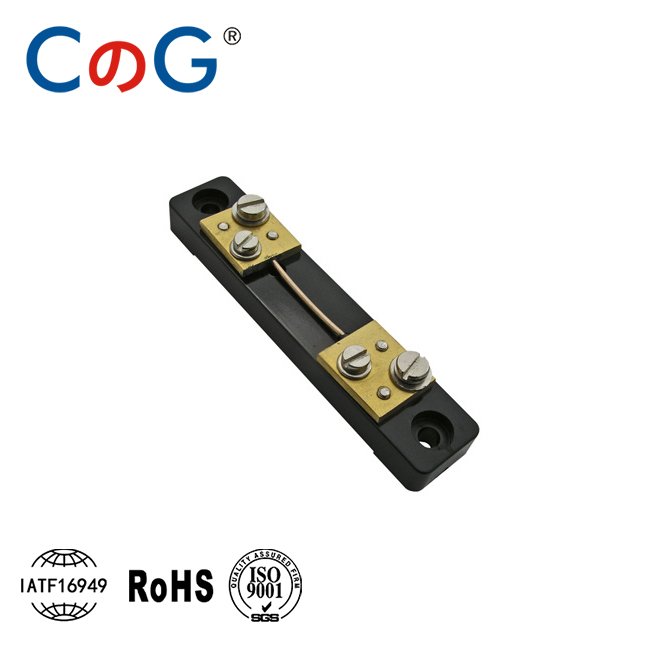

FL-13 Russia DC Shunts 1 to 5A
The FL-13 Russia DC Shunts 1 to 5A are compact precision shunts engineered for low-current DC measurement applications. With a standard 75mV output and ±0.5% accuracy, this model ensures stable performance in battery protection circuits, DC meters, and energy monitoring systems.
Constructed using manganin resistive elements and brass terminals, it offers excellent thermal stability and minimal drift even at micro-scale currents. Compact in design and easy to mount, this model is suitable for integration in portable instruments, PCB modules, and power control units.
| Parameter | Specification |
|---|---|
| Model | FL-13 Russia DC Shunts 1 to 5A |
| Current Range | 1A – 5A |
| Voltage Drop | 75mV (custom options: 60mV, 100mV) |
| Accuracy | ±0.5% (optional ±0.1%) |
| Material | Manganin core, brass terminals |
| Mounting Type | Panel or PCB screw mounting |
| Overload Capacity | 120% rated current for 2 hours |
| Applications | Battery packs, DC meters, monitoring boards |
| Customization | Output voltage, terminal shape, resistance |
